• 48x 10/100/1000 Ports - Gigabit POE Ethernet Switch
  • 2 x 10G SFP Uplinks
  • FlexStack-Plus Stacking (Optional)
  • PoE Power : 370W
  • IP Lite
  • Layer 3
  • Managed

    Additional information

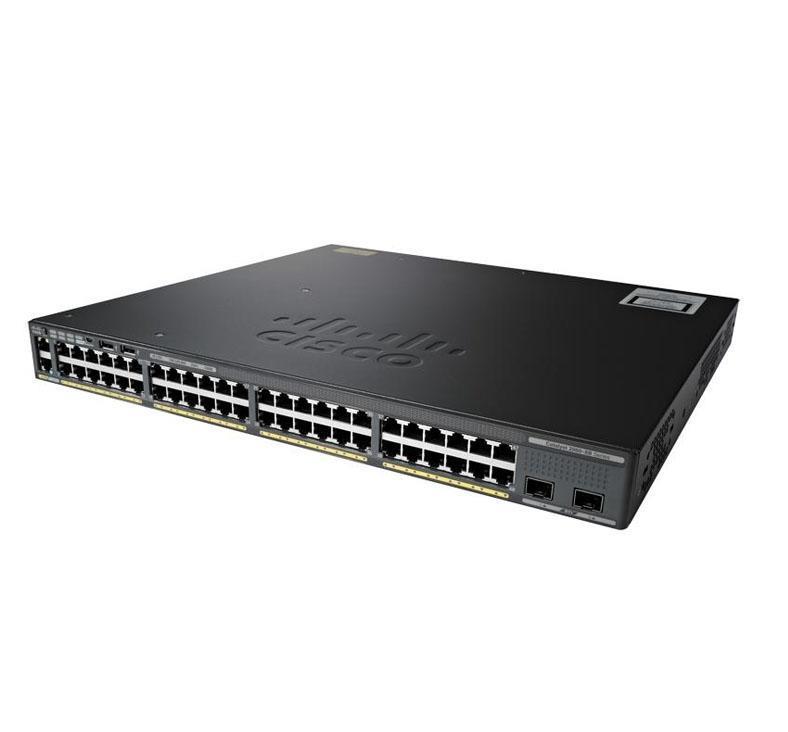

    Install Cisco WS-C2960XR-48LPD-I Switch for Multi-purpose Deployments

    Cisco WS-C2960XR-48LPD-I Switch is a solid, reliable option in a 48 Port Gigabit Switch with Layer 3, perfect for secondary and tertiary deployments as well as branch-office deployment.  It features 48 Gigabit Ethernet ports, backed by 4 SFP uplinks.

    Key Benefits of Cisco WS-C2960XR-48LPD-I Switch

    Cisco WS-C2960XR-48LPD-I Switch offers easy scalability with Cisco FlexStack-Plus, with the ability to stack up to eight Cisco 2960X series units into a single logical stack with 80Gbps of throughput.  An optional secondary power supply allows it to function uninterrupted even in critical roles.


    Enclosure Type Rack-mountable - 1U
    Feature Set IP Lite
    Uplink Interfaces 2 x 10G SFP+ uplinks
    Ports 48 x 10/100/1000 (POE+)
    Available PoE Power 370W
    Forwarding Bandwidth 108Gbps
    Maximum stacking number 8
    Stack bandwidth 80G
    Switching Bandwidth 216Gbps
    RAM 512 MB
    Flash Memory 128 MB
    Dimensions 44.5 cm x 40.8 cm x 4.45 cm
    Package Weight 16.15 Kg
    Network management Interface 10/100 Mbps Ethernet (RJ-45)
    Available PoE Power 370W
    Forwarding bandwidth(Gbps) 108Gbps
    Maximum stacking number 8
    Forwarding Performance 130.9Mpps
    Switching bandwidth 216Gbps
    Maximum active VLANs 1023
    MAC Address Table Size 16K (default)
    CPU APM86392 600MHz dual core
    RAM 512 MB
    Flash Memory 128 MB
    Status Indicators  Per-port status: Link integrity, disabled, activity, speed, and full duplex
     System status: System, RPS, PoE, Stack link status, link duplex, and link speed
    Console ports USB (Type-B), Ethernet (RJ-45)
    Expansion Slot(s)
    1 FlexStack-Plus slot and 1 power redundant slot
    Stack Modules C2960X-STACK
    Stacking cable  CAB-STK-E-0.5M FlexStack-Plus stacking cable with a 0.5 m length
     CAB-STK-E-1M FlexStack-Plus stacking cable with a 1.0 m length
     CAB-STK-E-3M FlexStack-Plus stacking cable with a 3.0 m length
    Power supply PWR-C2-250WAC
    Power Device Power supply – redundant – plug-in module
    Poer Redundancy optional
    Voltage range (Auto) 110V-240V
    Power Consumption Operationa 0.48kVA
    Width 17.5 Inches (44.5 cm)
    Height 1.75 Inches (4.45 cm)
    Weight 14.0 Pounds (6.4 Kg)
    Rack Mounting Kit Optional
     MTBF in hours 275,430
    Compliant Standards  IEEE 802.1D Spanning Tree Protocol
     IEEE 802.1p CoS Prioritization
     IEEE 802.1Q VLAN
     IEEE 802.1s
     IEEE 802.1w
     IEEE 802.1X
     IEEE 802.1ab (LLDP)
     IEEE 802.3ad
     IEEE 802.3af and IEEE 802.3at
     IEEE 802.3ah (100BASE-X single/multimode fiber only)
     IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
     IEEE 802.3 10BASE-T
     IEEE 802.3u 100BASE-TX
     IEEE 802.3ab 1000BASE-T
     IEEE 802.3z 1000BASE-X
     RMON I and II standards
     SNMP v1, v2c, and v3
     IEEE 802.3az
     IEEE 802.3ae 10Gigabit Ethernet
     IEEE 802.1ax
    System software IOS IP Lite
    license ENERGY-MGMT, ENERGY-MGT-100-K9
    features  IP unicast routing protocols (Static, Routing Information Protocol Version 1 [RIPv1], RIPv2, RIPng, and EIGRP-Stub)
     Advanced IP unicast routing protocols (OSPF for Routed Access)
     EIGRPv3-Stub and PIMv6-Stub are supported as a part of the IPv6 routing suite.
     Equal-cost routing
     Policy-based routing (PBR)
     Hot Standby Routing Protocol (HSRP) and Virtual Router Redundancy Protocol (VRRP)
     Protocol Independent Multicast (PIM)
    Network security  MAC-based VLAN assignment enables  Cisco TrustSec uses
     Comprehensive 802.1X  IPv6 First-Hop Security
     Device Sensor and Device Classifier   Cisco Trust Anchor Technology
     Cisco Threat Defense  Private VLANs
     Unicast Reverse Path Forwarding (uRPF)  Multidomain Authentication
     Access Control Lists (ACLs)  Switched Port Analyzer (SPAN)
     Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3)
     TACACS+ and RADIUS authentication  MAC Address Notification
     Multilevel security on console access  BPDU Guard
     Spanning Tree Root Guard (STRG)  IGMP filtering
    Management & Troubleshooting  Auto-MDOX TDR  UDLD  IP SLA Responder

     layer 2 / IP Traceroute  SPAN  RSPAN

     Express Setup  Device Manager  Cisco Network Assistant

     Smartports + Advisor  Troubleshooting Advisor  Drag-and-drop Cisco IOS Upgrade

     IP Address DHCP  Autoinstall with saved configuration  Configuration Replace

     DHCP Auto Image Upgrade  DHCP Port Based Allocation  Error Disable MIB

    Technical Support and Services  Cisco SMARTnet Service  Cisco Smart Foundation Service  Cisco Smart Care Service

     Cisco SP Base Service  Cisco Focused Technical Support Services

    Operating temperature up to 5000 ft (1500 m) 23F to 113 (-5C to 45C)
    Operating temperature up to 10,000 ft (3000 m) 23F to 104F (-5C to 40C)
    Short-term exception at sea level* 23F to 131F (-5C to 55C)
    Short-term exception up to 5000 feet (1500 m)* 23F to 122F (-5C to 50C)
    Short-term exception up to 10,000 feet (3000 m)* 23F to 113F (-5C to 45C)
    Short-term exception up to 13,000 feet (4000 m)* 23 to 104F (-5C to 40C)
    Storage temperature up to 15,000 feet (4573 m) -13 to 158F (-25 to 70C)
    Operating altitude Up to 10,000 (Up to 3000 Meters)
    Storage altitude Up to 13,000 (Up to 4000 Meters)
    Operating relative humidity 10% to 95% noncondensing
    Storage relative humidity 10% to 95% noncondensing
