| Features | |||
|---|---|---|---|
|
Content |
WS-C2960XR-48LPS-I-NEW |
||
|
Details |
|
||
|
Category |
|||
|
Stock |
|||
| Brand | Cisco |
|---|

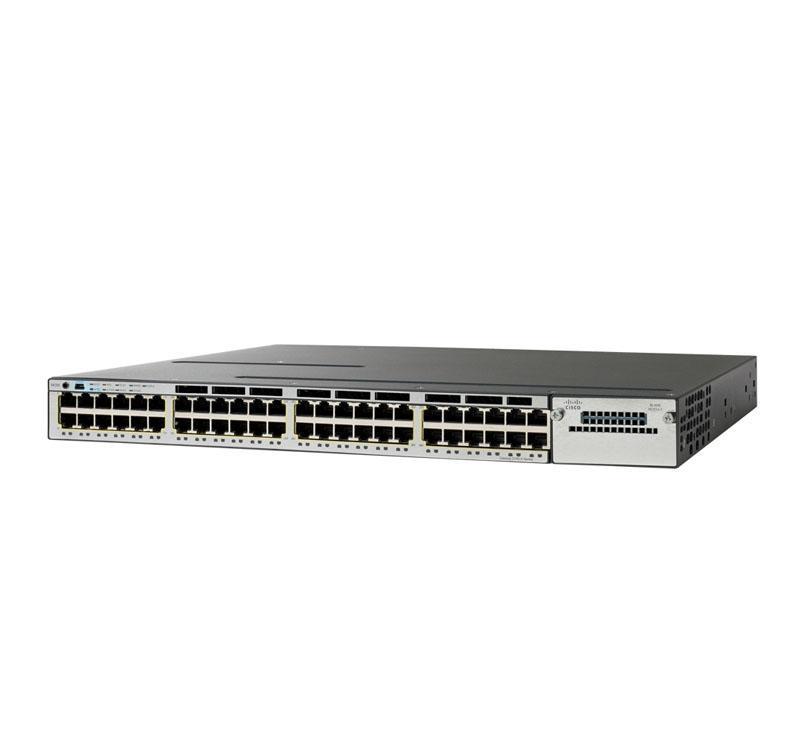

Cisco WS-C2960XR-48LPS-I Switch features 48 Gigabit Ethernet ports with line-rate forwarding performance. It reduces power consumption and embodies advanced energy management features. It comes with USB and Ethernet management interfaces for simplified operations and application visibility and capacity planning with integrated NetFlow-Lite. Cisco WS-C2960XR-48LPS-I Switch also features LAN Base or LAN Lite Cisco IOS software.Â
Cisco WS-C2960XR-48LPS-I Switch is designed for operational simplicity to lower total cost of ownership. It enables scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS software features. Cisco WS-C2960XR-48LPS-I Switch has power resilience with optional dual field-replaceable power supplies.
 Â
| Enclosure Type | Rack-mountable - 1U |
| Feature Set | IP Lite |
| Uplink Interfaces | 4 x 1G SFP |
| Ports | 48 x 10/100/1000 (POE+) |
| Available PoE Power | 370W |
| Forwarding Bandwidth | 108Gbps |
| Maximum stacking number | 8 |
| Stack bandwidth | 80G |
| Switching Bandwidth | 216Gbps |
| RAM | 512 MB |
| Flash Memory | 128 MB |
| Dimensions | 44.5 cm x 40.8 cm x 4.45 cm |
| Package Weight | 16.15 Kg |
| Network management Interface | 10/100 Mbps Ethernet (RJ-45) |
| Available PoE Power | 370W |
| Forwarding bandwidth(Gbps) | 108Gbps |
| Maximum stacking number | 8 |
| Stack Bandwidth | 80G |
| Forwarding Performance | 107.1Mpps |
| Switching bandwidth | 216Gbps |
| Maximum active VLANs | 1023 |
| MAC Address Table Size | 16K (default) |
| CPU | APM86392 600MHz dual core |
| RAM | 512 MBÂ |
| Flash Memory | 128 MB |
| Status Indicators |  Per-port status: Link integrity, disabled, activity, speed, and full duplex  System status: System, RPS, PoE, Stack link status, link duplex, and link speed |
| Console ports | USB (Type-B), Ethernet (RJ-45)Â |
| Expansion Slots | 1 FlexStack-Plus slot and 1 power redundant slot |
| Stack Modules | C2960X-STACK |
| Stacking cable |  CAB-STK-E-0.5M FlexStack-Plus stacking cable with a 0.5 m length  CAB-STK-E-1M FlexStack-Plus stacking cable with a 1.0 m length  CAB-STK-E-3M FlexStack-Plus stacking cable with a 3.0 m length |
| Poer Supply | PWR-C2-250WAC |
| Power Device | Power supply – redundant – plug-in module |
| Power Redundancy | optional |
| Voltage range (Auto) | 110V-240V |
| Power Consumption Operational | 0.47kVA |
| Width | 17.5 Inches (44.5 cm) |
| Depth | 16 Inches (40.8 cm) |
| Height | 1.75 Inches (4.45 cm) |
| Weight | 14.2 Pounds (6.4Kgs) |
| Package Weight | 35.6 Pounds (16.15Kg) |
| Rack Mounting kit | Optional |
| MTBF in hours | 274,380 |
| Complaint Standards |  IEEE 802.1D Spanning Tree Protocol  IEEE 802.1p CoS Prioritization  IEEE 802.1Q VLAN  IEEE 802.1s  IEEE 802.1w  IEEE 802.1X  IEEE 802.1ab (LLDP)  IEEE 802.3ad  IEEE 802.3af and IEEE 802.3at  IEEE 802.3ah (100BASE-X single/multimode fiber only)  IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports  IEEE 802.3 10BASE-T  IEEE 802.3u 100BASE-TX  IEEE 802.3ab 1000BASE-T  IEEE 802.3z 1000BASE-X  RMON I and II standards  SNMP v1, v2c, and v3  IEEE 802.3az  IEEE 802.3ae 10Gigabit Ethernet  IEEE 802.1ax |
| System software | IOS IP Lite |
| license | ENERGY-MGMT, ENERGY-MGT-100-K9 |
| features |  IP unicast routing protocols (Static, Routing Information Protocol Version 1 [RIPv1], RIPv2, RIPng, and EIGRP-Stub)  Advanced IP unicast routing protocols (OSPF for Routed Access)  EIGRPv3-Stub and PIMv6-Stub are supported as a part of the IPv6 routing suite.  Equal-cost routing  Policy-based routing (PBR)  Hot Standby Routing Protocol (HSRP) and Virtual Router Redundancy Protocol (VRRP)  Protocol Independent Multicast (PIM) |
| Network security |  MAC-based VLAN assignment enables Cisco TrustSec uses  Comprehensive 802.1X IPv6 First-Hop Security  Device Sensor and Device Classifier  Cisco Trust Anchor Technology  Cisco Threat Defense Private VLANs  Unicast Reverse Path Forwarding (uRPF) Multidomain Authentication  Access Control Lists (ACLs) Switched Port Analyzer (SPAN)  Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3)  TACACS+ and RADIUS authentication MAC Address Notification  Multilevel security on console access BPDU Guard  Spanning Tree Root Guard (STRG) IGMP filtering |
| Managmente & Troubleshooting |  Auto-MDOX TDR UDLD IP SLA Responder
 layer 2 / IP Traceroute SPAN RSPAN  Express Setup Device Manager Cisco Network Assistant  Smartports + Advisor Troubleshooting Advisor Drag-and-drop Cisco IOS Upgrade  IP Address DHCP Autoinstall with saved configuration Configuration Replace  DHCP Auto Image Upgrade DHCP Port Based Allocation Error Disable MIB |
| Technical Support and Services |  Cisco SMARTnet Service Cisco Smart Foundation Service Cisco Smart Care Service
 Cisco SP Base Service Cisco Focused Technical Support Services |
| Operating temperature up to 5000 ft (1500 m) | 23F to 113 (-5C to 45C) |
| Operating temperature up to 10,000 ft (3000 m) | 23F to 104F (-5C to 40C) |
| Short-term exception at sea level* | 23F to 131F (-5C to 55C) |
| Short-term exception up to 5000 feet (1500 m)* | 23F to 122F (-5C to 50C) |
| Short-term exception up to 10,000 feet (3000 m)* | 23F to 113F (-5C to 45C) |
| Short-term exception up to 13,000 feet (4000 m)* | 23 to 104F (-5C to 40C) |
| Storage temperature up to 15,000 feet (4573 m) | -13 to 158F (-25 to 70C) |
| Operating altitude | Up to 10,000 (Up to 3000 Meters) |
| Storage altitude | Up to 13,000 (Up to 4000 Meters) |
| Operating relative humidity | 10% to 95% noncondensing |
| Storage relative humidity | 10% to 95% noncondensing |
