WS-C2960XR-48FPD-I-NEW
Details
  • 48x 10/100/1000 Ports - Gigabit POE Ethernet Switch
  • 2 x 10G SFP Uplinks
  • FlexStack-Plus Stacking (Optional)
  • PoE Power: 740W
  • IP Lite
  • Layer 3
  • Managed
Category
Stock

Additional information

Brand

Cisco

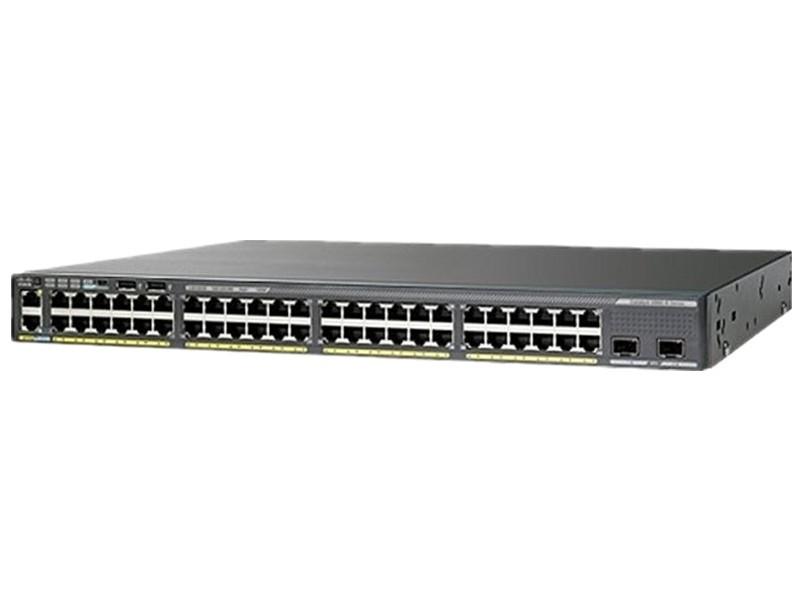

Use Cisco WS-C2960XR-48FPD-I Switch for Energy-Efficiency

Cisco WS-C2960XR-48FPD-I Switch is Forty eight (48) 10/100/1000 Ethernet Gigabit ports and Two (2) 10G SFP+ uplinks Dual Core CPU with 512MB Memory (DRAM) and 128MB flash memory Up to 8 switches stacking with 80G of stack throughput Power over Ethernet Plus(PoE+). It supports up to 740W of PoE budget for 24 ports with 30W per port or 48 ports with 15.4W per port Dual field-replaceable power redundant modular option (optional).

Key Benefits of Cisco WS-C2960XR-48FPD-I Switch

Cisco WS-C2960XR-48FPD-I Switch is designed for operational simplicity to lower total cost of ownership. It enables scalable, secure and energy-efficient business operations with intelligent services.



Enclosure Type Rack-mountable - 1U
Feature Set IP Lite
Uplink Interfaces 2 x 10G SFP+
Ports 48 x 10/100/1000 (POE+)
Available PoE Power 740W
Forwarding Bandwidth 108Gbps
Maximum stacking number 8
Stack bandwidth 80G
Switching Bandwidth 216Gbps
RAM 512 MB
Flash Memory 128 MB
Dimensions 44.5 cm x 40.8 cm x 4.45 cm
Network management Interface 10/100 Mbps Ethernet (RJ-45)
Forwarding Performance 130.9Mpps
Switching bandwidth 216Gbps
Maximum active VLANs 1023
MAC Address Table Size 16K (default)
CPU APM86392 600MHz dual core
Status Indicators  Per-port status: Link integrity, disabled, activity, speed, and full duplex
 System status: System, RPS, PoE, Stack link status, link duplex, and link speed
Console ports USB (Type-B), Ethernet (RJ-45)
Expansion Slot(s) 1 FlexStack-Plus slot and 1 power redundant slot
Stack Modules C2960X-STACK
Stacking cable  CAB-STK-E-0.5M FlexStack-Plus stacking cable with a 0.5 m length
 CAB-STK-E-1M FlexStack-Plus stacking cable with a 1.0 m length
 CAB-STK-E-3M FlexStack-Plus stacking cable with a 3.0 m length
Power supply PWR-C2-250WAC
Power Device Power supply – redundant – plug-in module
Power Redundancy optional
Voltage range (Auto) 110V-240V
Power Consumption Operational 0.89kVA
Weight 14.6 Pounds (6.6 Kg)
Rack Mounting Kit Optional
MTBF in hours 231,590
Compliant Standards  IEEE 802.1D Spanning Tree Protocol
 IEEE 802.1p CoS Prioritization
 IEEE 802.1Q VLAN
 IEEE 802.1s
 IEEE 802.1w
 IEEE 802.1X
 IEEE 802.1ab (LLDP)
 IEEE 802.3ad
 IEEE 802.3af and IEEE 802.3at
 IEEE 802.3ah (100BASE-X single/multimode fiber only)
 IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
 IEEE 802.3 10BASE-T
 IEEE 802.3u 100BASE-TX
 IEEE 802.3ab 1000BASE-T
 IEEE 802.3z 1000BASE-X
 RMON I and II standards
 SNMP v1, v2c, and v3
 IEEE 802.3az
 IEEE 802.3ae 10Gigabit Ethernet
 IEEE 802.1ax
System software IOS IP Lite
license ENERGY-MGMT, ENERGY-MGT-100-K9
features  IP unicast routing protocols (Static, Routing Information Protocol Version 1 [RIPv1], RIPv2, RIPng, and EIGRP-Stub)
 Advanced IP unicast routing protocols (OSPF for Routed Access)
 EIGRPv3-Stub and PIMv6-Stub are supported as a part of the IPv6 routing suite.
 Equal-cost routing
 Policy-based routing (PBR)
 Hot Standby Routing Protocol (HSRP) and Virtual Router Redundancy Protocol (VRRP)
 Protocol Independent Multicast (PIM)
Network security  MAC-based VLAN assignment enables  Cisco TrustSec uses
 Comprehensive 802.1X  IPv6 First-Hop Security
 Device Sensor and Device Classifier   Cisco Trust Anchor Technology
 Cisco Threat Defense  Private VLANs
 Unicast Reverse Path Forwarding (uRPF)  Multidomain Authentication
 Access Control Lists (ACLs)  Switched Port Analyzer (SPAN)
 Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3)
 TACACS+ and RADIUS authentication  MAC Address Notification
 Multilevel security on console access  BPDU Guard
 Spanning Tree Root Guard (STRG)  IGMP filtering
Management & Troubleshooting  Auto-MDOX TDR  UDLD  IP SLA Responder

 layer 2 / IP Traceroute  SPAN  RSPAN

 Express Setup  Device Manager  Cisco Network Assistant

 Smartports + Advisor  Troubleshooting Advisor  Drag-and-drop Cisco IOS Upgrade

 IP Address DHCP  Autoinstall with saved configuration  Configuration Replace

 DHCP Auto Image Upgrade  DHCP Port Based Allocation  Error Disable MIB

Operating temperature up to 5000 ft (1500 m) 23F to 113 (-5C to 45C)
Operating temperature up to 10,000 ft (3000 m) 23F to 104F (-5C to 40C)
Short-term exception at sea level* 23F to 131F (-5C to 55C)
Short-term exception up to 5000 feet (1500 m)* 23F to 122F (-5C to 50C)
Short-term exception up to 10,000 feet (3000 m)* 23F to 113F (-5C to 45C)
Short-term exception up to 13,000 feet (4000 m)* 23 to 104F (-5C to 40C)
Storage temperature up to 15,000 feet (4573 m) -13 to 158F (-25 to 70C)
Operating altitude Up to 10,000 (Up to 3000 Meters)
Storage altitude Up to 13,000 (Up to 4000 Meters)
Operating relative humidity 10% to 95% noncondensing
Storage relative humidity 10% to 95% noncondensing
