| Features | |||
|---|---|---|---|
|
Content |
JL258A-NEW |
||
|
Details |
|
||
|
Category |
|||
|
Stock |
|||
| Brand | HPE |
|---|

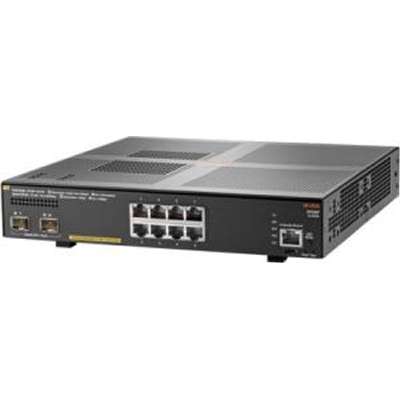

| Type | Aruba 2930F 8G PoE+ 2SFP+ Switch |
| I/O ports and slots | 8 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+)
Duplex: 10BASE-T/100BASETX: half or full 1000BASE-T: full only |
| Additional ports and slots | 1 dual-personality (RJ-45 or USB micro-B) serial console port |
| Memory and processor | Dual-Core ARM Coretex A9 @ 1016 MHz, 1 GB DDR3 SDRAM
Packet buffer size: 12.38 MB 4.5MB Ingress/7.785 Egress, 4 GB eMMC |
| Management | Aruba AirWave Network Management; IMC – Intelligent Management Center
Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB)Â Â Â Â Â Â Â |
| 1000 Mb Latency | < 3.8 s (64-byte packets) |
| 10 Gbps Latency | < 1.6 s (64-byte packets) |
| Throughput | up to 41.7 Mp/s |
| Switching capacity | 56 Gb/s |
| Routing table size | 10000 entries (IPv4), 5000 entries (IPv6) |
| MAC address table size | 32768 entries |
| Dimensions | 4.39 x 25.4 x 25.4 cm ( 1.73 x 10 x 10 in)
1U height |
| Weight | 2.0 kg ( 4.41 lb) |
| 80plus.org Certification | N/A |
| Description | Power supply meets DoE VI certification |
| Maximum heat dissipation | 558.09 kJ/hr ( 529 BTU/hr) |
| Voltage | 90 – 264 V ac, rated |
| Current | 1.5/0.8 A |
| Maximum power rating | 155 W |
| Idle power | N/A |
| Frequency | 50/60 Hz |
| PoE power | 125 W PoE+ |
| Operating temperature | 0C to 45C (32F to 113F)
up to 5000 Feet – 0C to 40C (32F to 104F) up to 10000 Feet |
| Operating relative humidity | 15% to 95% @ 40C ( 104F)
noncondensing |
| Nonoperating/Storage temperature | -40C to 70C (-40F to 158F)
up to 15000 Feet |
| Nonoperating/Storage temperature | 15% to 95% @65C ( 149F)
noncondensing |
| Acoustic | Power: 0 dB, Pressure: 0 dB Fanless |
| Airflow direction | Side-to-side |
| Safety | UL 60950-1, 2nd Edition
EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013 IEC 60950-1:2005 +A1:2009 +A2:2013 CSA 22.2 No. 60950-1-07 2nd EN 60825-1:2007 / IEC 60825-1:2007 Class 1 |
| Emissions | EN 55022:2010/CISPR 22 Class A
FCC CFR 47 Part 15 Class A VCCI Class A; ICES-003 Class A CNS 13438 |
| Immunity | Generic:EN 55024:2010/CISPR 24
ESDIEC 61000-4-2 RadiatedIEC 61000-4-3 EFT/BurstIEC 61000-4-4 SurgeIEC 61000-4-5 ConductedIEC 61000-4-6 Power frequency magnetic field IEC 61000-4-8 Voltage dips and interruptionsIEC 61000-4-11 HarmonicsIEC/EN 61000-3-2 FlickerIEC/EN 61000-3-3Â Â Â Â Â Â Â Â |
