JL261A-NEW
Details
  • Switch
  • L3
  • managed
  • 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
  • rack-mountable
  • PoE+ (370 W)
Category
Stock

Additional information

Brand

HPE

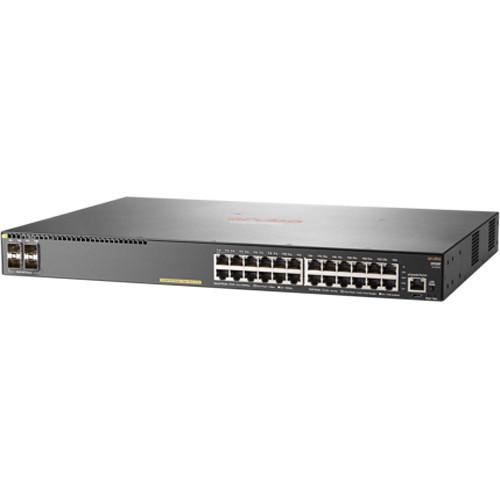

HPE Aruba 2930F 24G PoE+ 4SFP Switch (JL261A) Overview



The Aruba 2930F Switch Series is designed for customers creating digital workplaces optimized for mobile users. These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. Virtual Switching Framework (VSF) provides stacking scale and simplicity for enterprise edge, SMB and branch offices. The 2930F delivers performance and value with support for RIP routing, Access OSPF, 10GbE uplinks, up to 740W PoE+, robust QoS, and requires no software licensing.

Type Aruba 2930F 24G PoE+ 4SFP Switch
I/O ports and slots 24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+) Duplex: 10BASE-T/100BASETX: half or full 1000BASE-T: full only
Additional ports and slots 1 dual-personality (RJ-45 or USB micro-B) serial console port
Memory and processor Dual Core ARM Coretex A9 @ 1016 MHz, 1 GB DDR3 SDRAM

Packet buffer size: 12.38 MB 4.5MB Ingress/7.785 Egress, 4 GB eMMC

Management Aruba AirWave Network Management; IMC – Intelligent Management Center

Command-line interface

Web browser

Configuration menu

SNMP manager

Telnet

RMON1

FTP

Out-of-band management (serial RS-232C or micro USB)

1000 Mb Latency < 3.8 s (64-byte packets)
10 Gbps Latency N/A
Throughput up to 41.7 Mp/s
Switching capacity 56 Gb/s
Routing table size 10000 entries (IPv4), 5000 entries (IPv6)
MAC address table size 32768 entries
Dimensions 4.39 x 44.25 x 30.42 cm ( 1.73 x 17.42 x 11.98 in)
1U height
Weight 3.9 kg ( 8.6 lb)
80plus.org Certification Silver
Description N/A
Maximum heat dissipation 1601.49 kJ/hr (1518 BTU/hr)
Voltage 100 – 127 / 200 – 240 V ac, rated
Current 4.9/2.4 A
Maximum power rating 445 W
Idle power 36.8 W
Frequency
Frequency 50/60 Hz
PoE power 370 W PoE+
Operating temperature 0_C to 45_C (32_F to 113_F)

up to 5000 Feet

– 0C to 40C (32F to 104F) up to 10000 Feet

Operating relative humidity 15% to 95% @ 40_C ( 104_F)

noncondensing

Nonoperating/Storage temperature -40_C to 70_C (-40_F to 158_F)

up to 15000 Feet

Nonoperating/Storage temperature 15% to 95% @65_C ( 149_F)

noncondensing

Acoustic Power: 54.1 dB, Pressure: 40.6 dB
Airflow direction Side-to-side
Safety UL 60950-1, 2nd Edition

EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013

IEC 60950-1:2005 +A1:2009 +A2:2013

CSA 22.2 No. 60950-1-07 2nd

EN 60825-1:2007 / IEC 60825-1:2007 Class 1

Emissions EN 55022:2010/CISPR 22 Class A

FCC CFR 47 Part 15 Class A

VCCI Class A; ICES-003 Class A

CNS 13438

Immunity Generic:EN 55024:2010/CISPR 24

ESDIEC 61000-4-2

RadiatedIEC 61000-4-3

EFT/BurstIEC 61000-4-4

SurgeIEC 61000-4-5

ConductedIEC 61000-4-6

Power frequency magnetic fieldIEC 61000-4-8

Voltage dips and interruptionsIEC 61000-4-11

HarmonicsIEC/EN 61000-3-2

FlickerIEC/EN 61000-3-3
