Features
Content
SG550X-48MP-K9-NEW
Details
  • Switch
  • L3
  • Managed
  • 48 x 10/100/1000 (PoE+) + 2 x 10 Gigabit SFP+ (uplink) + 2 x combo 10GBase-T (uplink)
  • Rack-Mountable
  • PoE+ (740 W)
Category
Stock

Additional information

Brand

Cisco

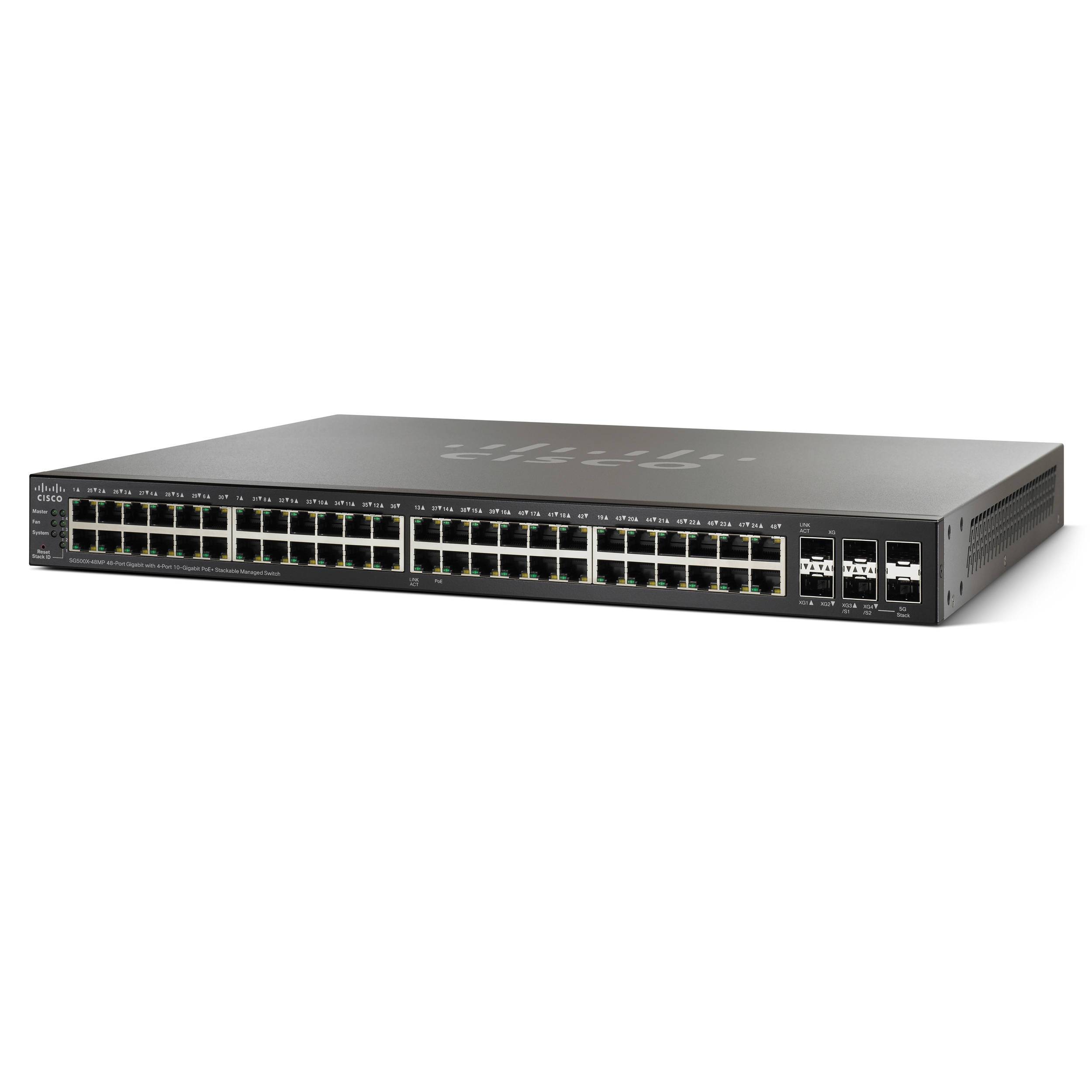

CISCO SG550X-48MP-K9 for Faster Data Speed

Cisco SG550X-48MP-K9 Switch offers platform for faster data speed, continuous availability, and advanced security for LAN connection.

Key Benefits of Cisco SG550X-48MP-K9

By using this Cisco SG550X-48MP-K9 Switch, users will get the desired speed to share information quickly and deliver substantial productivity returns.

Short Description Switch: L3 managed, 48 x 10/100/1000 + 2 x 10 GE combo + 2 x 10GE SFP+, rack-mountable, Max PoE
Device type Switch: 1G, 48 ports, L3 managed
Enclosure type Rack-mountable, 1RU
Ports 48 x 10/100/1000 + 2 x 10GE copper/SFP+ combo + 2 x 10GE SFP+
Power over Ethernet (PoE) PoE, PoE+ and 60W PoE (740W)
Switching capacity 176 Gbps
Forwarding performance (64-byte packets) 130.94 Mpps
MAC address table size 16,000 entries
Capacity (active VLANS) 4000
Routing protocol RIPv2, VRRP, PBR, static IPv4/IPv6 routing
Remote management protocol SNMPv1, RMON1, RMON2, RMON3, RMON9, Telnet, SNMPv3, SNMPv2c, HTTP, HTTPS, SSH, CLI
Features Stacking, flow control, Layer 2 switching, Layer 3 switching, VLAN support,

IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, access control list (ACL) support,

quality of service (QoS), reset button, LACP support, Energy Efficient Ethernet, dynamic VLAN support (GVRP),

advanced threat protection, IPv6 first-hop security, static routing, dynamic routing, policy based routing, sFlow, RSPAN, ?60W PoE, hardware redundancy

Compliant IEEE standards 802.3, 802.3u, 802.3z, 802.1D, 802.1Q, 802.3ab, 802.3ae, 802.3an, 802.1p, 802.3x, 802.3ad (LACP), 802.1w, 802.1x, 802.1s, 802.3af, 802.3at, 802.3az
RAM 512 MB
Flash memory 256 MB
Status indicators System, Master, Fan, RPS, Stack ID, Link/Speed/PoE per port
Interfaces 48 x 10BASE-T/100Base-TX/1000BASE-T, RJ-45, PoE, 2 x 10GBASE-T/SFP+ combo, 2 x SFP+, 1 x console, RJ45, 1 x RPS port
Power supply Internal
Width 17.3 in. (440 mm)
Depth 17.7 in. (450 mm)
Height 1.7 in. (44 mm)
Weight 14.75 lb (6.69 kg)
Cables included 1 x console cable
Compliance standards UL 60950, FCC Part 15 A, CSA 22.2
Minimum operating temperature 32-F (0-C)
Maximum operating temperature 122-F (50-C)
Humidity range operating 10-90% (noncondensing)
Minimum storage temperature -4-F (-20-C)
Maximum storage temperature 158-F (70-C)
Humidity range storage 10-90% (noncondensing)
