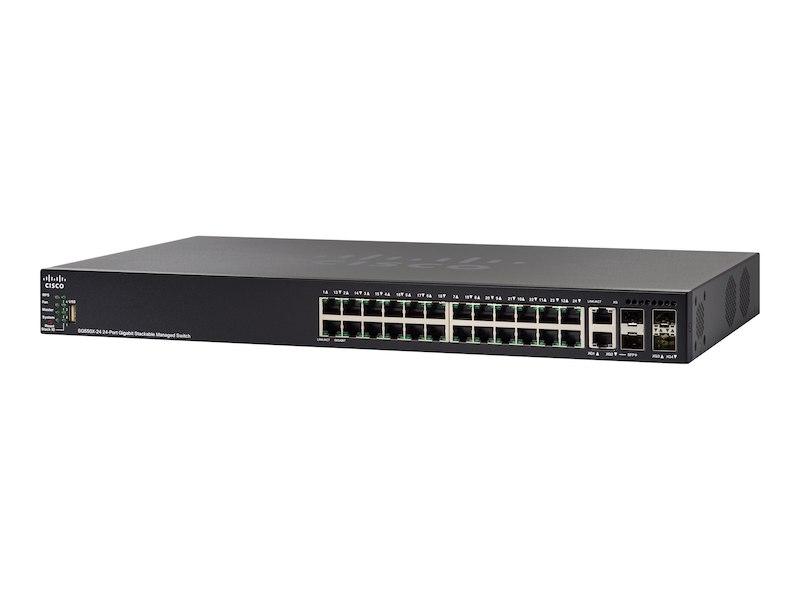

SG550X-24MPP-K9-NEW
Details
  • Switch
  • L3
  • Managed
  • 24 x 10/100/1000 (PoE+) + 2 x 10 Gigabit SFP+ (uplink) + 2 x combo 10GBase-T (uplink)
  • Rack-Mountable
  • PoE+ (740 W)
Category
Stock

Additional information

Brand

Cisco

The Cisco 550X Series are the next-generation stackable Managed Ethernet switches that provide the advanced capabilities and superior performance you need to support a more demanding network environment at an affordable price. These switches incorporate fan and power hardware redundancy, increasing overall network availability. Cisco 550X Series switches are designed to protect your technology investment as your business grows. Unlike switches that claim to be stackable but have elements that are administered and troubleshot separately, the Cisco 550X Series provides true stacking capability, allowing you to configure, manage, and troubleshoot multiple physical switches as a single device and more easily expand your network. A true stack delivers a unified data and control plane, in addition to a management plane, providing flexibility, scalability, and ease of use because the stack of units operate as a single entity constituting all the ports of the stack members.
Short Description Switch: L3 managed, 24 x 10/100/1000 + 2 x 10 GE combo + 2 x 10GE SFP+, rack-mountable, Max PoE
Device type Switch: 1G, 24 ports, L3 managed
Enclosure type Rack-mountable, 1RU
Ports 24 x 10/100/1000 + 2 x 10GE copper/SFP+ combo + 2 x 10GE SFP+
Power over Ethernet (PoE) PoE, PoE+ and 60W PoE (740W)
Switching capacity 128 Gbps
Forwarding performance (64-byte packets) 95.23 Mpps
MAC address table size 16,000 entries
Capacity (active VLANS) 4000
Routing protocol RIPv2, VRRP, PBR, static IPv4/IPv6 routing
Remote management protocol SNMPv1, RMON1, RMON2, RMON3, RMON9, Telnet, SNMPv3, SNMPv2c, HTTP, HTTPS, SSH, CLI
Features Stacking, flow control, Layer 2 switching, Layer 3 switching,

VLAN support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support,

Multiple Spanning Tree Protocol (MSTP) support, access control list (ACL) support, quality of service (QoS), reset button,

LACP support, Energy Efficient Ethernet, dynamic VLAN support (GVRP), advanced threat protection, IPv6 first-hop security,

static routing, dynamic routing, policy based routing, sFlow, RSPAN, ?60W PoE, hardware redundancy

Compliant IEEE standards 802.3, 802.3u, 802.3z, 802.1D, 802.1Q, 802.3ab, 802.3ae, 802.3an, 802.1p, 802.3x, 802.3ad (LACP), 802.1w, 802.1x, 802.1s, 802.3af, 802.3at, 802.3az
RAM 512 MB
Flash memory 256 MB
Status indicators System, Master, Fan, RPS, Stack ID, Link/Speed/PoE per port
Interfaces 24 x 10BASE-T/100Base-TX/1000BASE-T, RJ-45, PoE, 2 x 10GBASE-T/SFP+ combo, 2 x SFP+, 1 x console, RJ45, 1 x RPS port
Power supply Internal
Voltage required AC 120/230V (50/60 Hz)
Width 17.3 in. (440 mm)
Depth 17.7 in. (450 mm)
Height 1.7 in. (44 mm)
Weight 13.65 lb (6.19 kg)
Cables included 1 x console cable
Compliance standards UL 60950, FCC Part 15 A, CSA 22.2
Minimum operating temperature 32-F (0-C)
Maximum operating temperature 122-F (50-C)
Humidity range operating 10-90% (noncondensing)
Minimum storage temperature -4-F (-20-C)
Maximum storage temperature 158-F (70-C)
Humidity range storage 10-90% (noncondensing)
