Features
Content
CP-8821-K9-NEW
Details
  • Cordless extension handset
  • Bluetooth interface
  • IEEE 802.11a/b/g/n/ac (Wi-Fi)
  • SIP
  • 6 lines
  • Phone ONLY, no battery and charger
Category
Stock

Additional information

Brand

Cisco

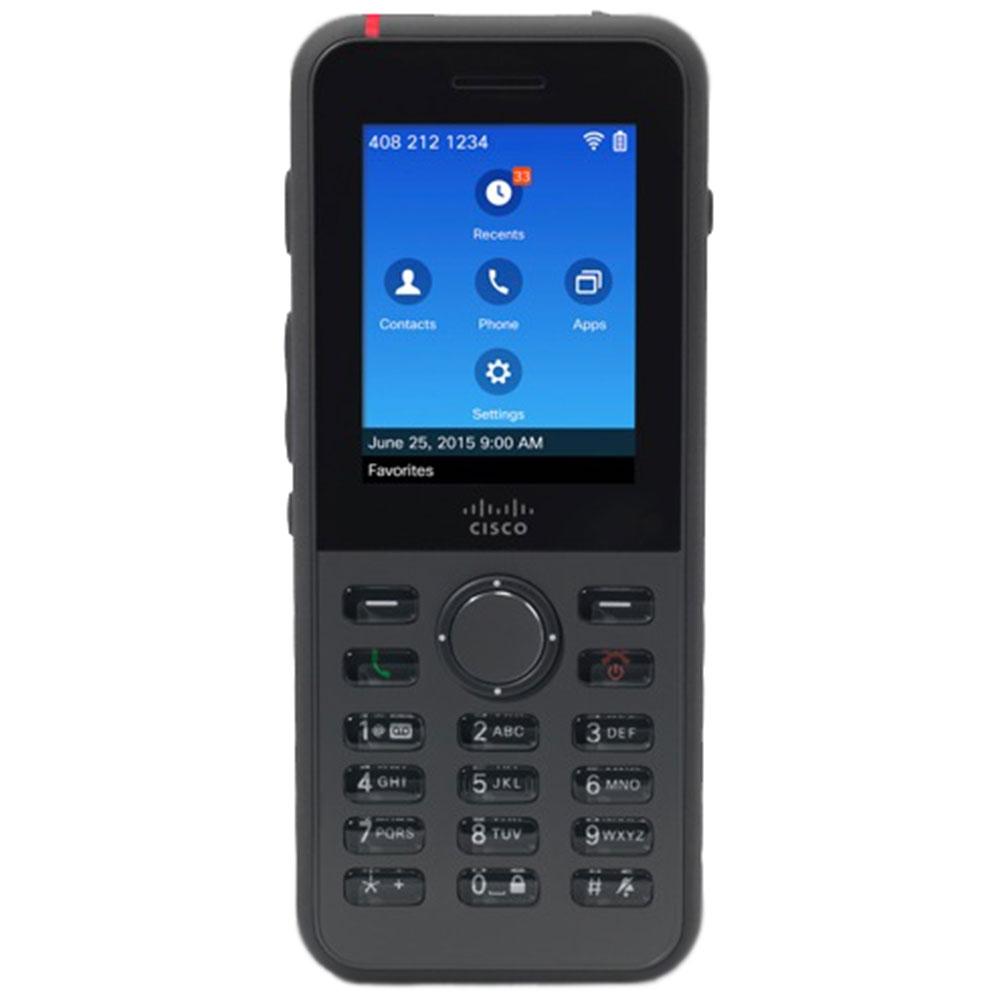

Cisco CP-8821-K9 IP Phone Overview



Rugged and lightweight, the Cisco 8821 Wireless IP Phone makes an ideal wireless LAN handset for mobile workers in healthcare, manufacturing, retail, hospitality, oil and chemical industries. IP67 rated and MIL-STD-810G tested, this business phone is resistant to shocks, breakage, dust and water. With strong encryption, it enables certificate management or enhanced security and easy configuration. This IP phone supports Fast Transition (802.11r) for seamless voice communications while roaming between Access Points in one campus. It also features call forwarding, call hold, call waiting and caller ID for improved audio communication. -Ingress Protection standard rated cordless phone, with seal for dust and water protection -High-resolution 240x320 pixel LCD color display is crisp and large -Bluetooth interface allows users to connect third-party wireless headsets -Supports Cisco and/or third-party XML applications such as push-to-talk for added convenience



Protocols  IEEE 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac
Display  2.4-in. (6-cm) color display with 240 x 320 pixel resolution
Dimensions (HxWxD)  5.2 x 2.2 x 0.7 in. (13.2 x 5.6 x 1.7 cm)
Weight  Device 4.4 oz (126 g), battery 1.3 oz (37 g), total = 5.7 oz (163 g)
Battery  Up to 13 hours of voice calling; up to 220 hours standby

 Rechargeable Lithium ion 4.35V, 2060mAh smart battery

Note: Actual battery life varies significantly based on environmental factors, scan mode, and Bluetooth use.
Input power  Phone: 100 to 240 VAC, ~0.2A, and 50 to 60 Hz

 AC adapters (by geographical region)
Protocols  IEEE 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac
Frequency bands and operating channels  2.412 to 2.472 GHz (channels 1 to 13)

 5.180 to 5.240 GHz (channels 36 to 48)

 5.260 to 5.320 GHz (channels 52 to 64)

 5.500 to 5.700 GHz (channels 100 to 140)

 5.745 to 5.825 GHz (channels 149 to 165)

 IEEE 802.11d is used to identify available channels

Nonoverlapping channels  2.4 GHz (20-MHz channels): up to 3 channels

 5 GHz (20-MHz channels): up to 24 channels

 5 GHz (40-MHz channels): up to 9 channels

 5 GHz (80-MHz channels): up to 4 channels

Operating modes  Auto (preference to 5 GHz)

 2.4 GHz only

 5 GHzonly

Display  2.4-in. (6-cm) color display with 240 x 320 pixel resolution
Dimensions (HxWxD)  5.2 x 2.2 x 0.7 in. (13.2 x 5.6 x 1.7 cm)
Weight  Device 4.4 oz (126 g), battery 1.3 oz (37 g), total = 5.7 oz (163 g)
Battery  Up to 13 hours of voice calling; up to 220 hours standby

 Rechargeable Lithium ion 4.35V, 2060mAh smart battery

Note: Actual battery life varies significantly based on environmental factors, scan mode, and Bluetooth use.

Input power  Phone: 100 to 240 VAC, ~0.2A, and 50 to 60 Hz

 AC adapters (by geographical region)

Operating temperature  Device: 14 to 122F (-10 to 50C)

 Battery: -4 to 140F (-20 to 60C)

Storage temperature  Device: -22 to 140F (-30 to 60C)

 Battery: -4 to 113F (-20 to 45C)

Relative humidity  10% to 95% (noncondensing)
Vibration  1.5 Grms maximum, 0.1 in. (2.5 mm) double amplitude at 0.887 octaves per minute from 5-500-5 Hz sweep, and 10-minute dwell on three major peaks in each of the three major mutually perpendicular axes
Thermal shock  -22F (-30C) 24 hours; 158F (70C) 24 hours
Altitude  Certified for operation: 0 to 6500 ft (0 to 2 km)
Endurance  Ingress Protection Standard IP67

 MIL-STD-810G Drop and Vibration procedures

Drop specs  Withstand multiple drops of 6 feet (1.8 m) onto concrete. 12 drops (6 faces, 4 edges, face, and bottom)
Headset  Wireless: Bluetooth SW 3.0 HW 4.0

 Wired: 3.5 mm stereo headphone/microphone jack

Connector  Magnetic USB 2.0 On the Go (OTG) connector
Safety  UL 60950-1

 CAN/CSA 60950-1

 EN 60950-1

 IEC 60950-1

 AS/NZS 60950.1

 IEC 60529 (IP 67)

Electromagnetic compatibility and electromagnetic interference (EMC/EMI)  47 CFR Part 15 Class B

 ICES-003 Class B

 EN 55022 Class B

 AS/NZS CISPR 22 Class B

 CISPR 22 Class B

 VCCI Class B

 EN 61000-3-2

 EN 61000-3-3

 KN 22 Class B

 EN 55024

 EN 50082-1

 EN 61000-6-1

 EN61000-6-3

 EN 300386

 EN 60601-1-2

 KN Immunity Series

Telecom  FCC Part 68 (CFR) (HAC)

 NZ PTC 220 DR

 AS/ACIF S004 and AS/ACIF S040 (Australia)

 TIA 810-B and TIA 920-A

 Canada-CS-03-HAC

Radio  USA: FCC Part 15.247 (2.4 GHz), FCC Part 15.407 (5 GHz), and FCC Part 2

 Canada: RSS-210

 Japan: ARIB STD-T66 (2.4 GHz), ARIB STD-T70, and T71 (4.9/5 GHz)

 ETSI: EN 300.328 (2.4 GHz) and EN 301.893 (5 GHz)

 Australia and New Zealand: AS/NZS 4268

 Singapore: IDA TS SRD

 Hong Kong: HKTA1039

RF Exposure  OET-65C (01-01)

 ANSI C95.1 (91)

 RSS-102

 ACA Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 2003

 EN 50360

 EN 301489-1

 EN 301489-17
