Features
Content
CP-8821-K9-BUN-NEW
Details
  • Cordless extension handset
  • Bluetooth interface
  • IEEE 802.11a/b/g/n/ac (Wi-Fi)
  • SIP
  • 6 lines
  • The device, battery, power cord, power adapter, and country clip included
Category
Stock

Additional information

Brand

Cisco

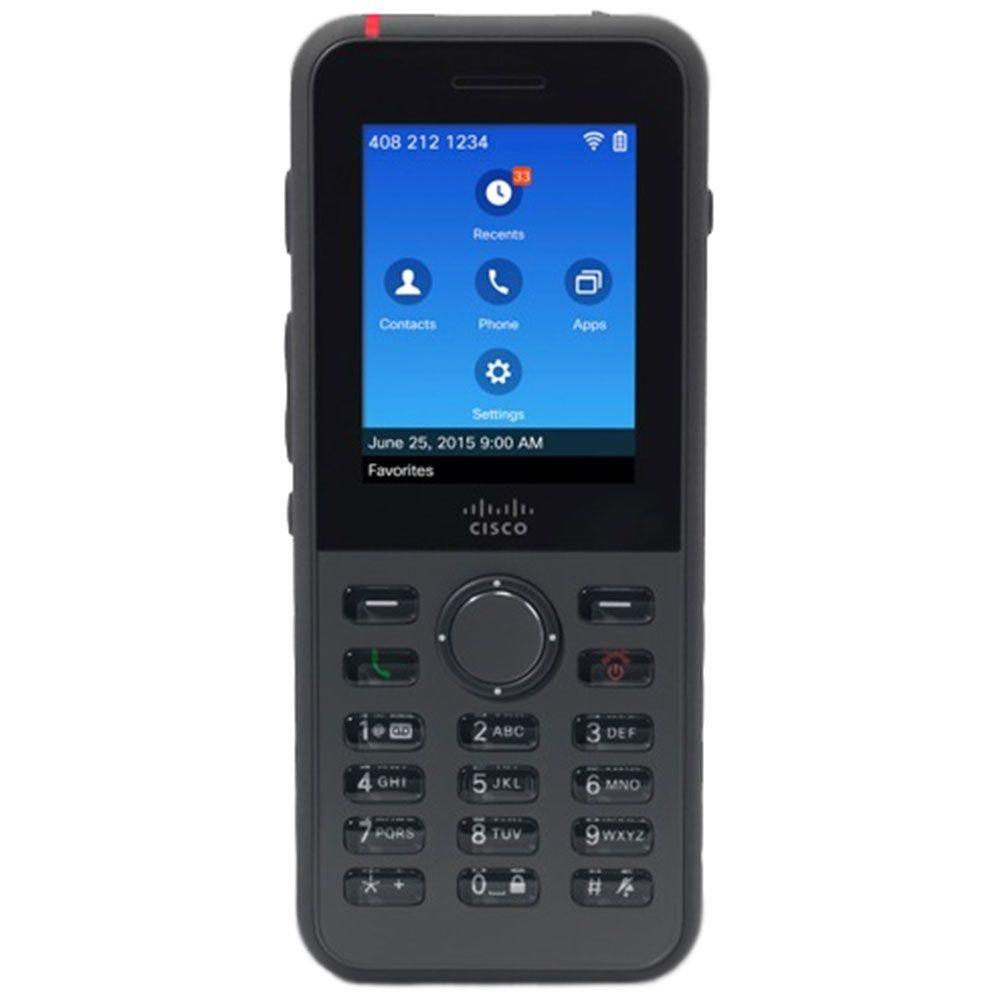

Cisco CP-8821-K9-BUN IP Phone Overview



The 8821 is specifically designed for workers whose roles are in more rigorous, industrial settings. Examples of ideal use cases include nurses and doctors in healthcare, operations and engineering staff in manufacturing, customer service representatives in retail, service staff such as maids in hospitality, and workers on rigs in the oil and chemical industries. While the 8821 is sleek and lightweight, the design is hardened for users. It is Ingress Protection standard (IP67) rated and is sealed for protection against dust and immersion in water. The device is also MIL-STD-810G tested, with a dozen drops onto concrete from heights of up to 6 feet (1.8 m), to help ensure shock resistance and avoid breakage if dropped. The 8821 enhances security and simplifies configuration management. Stronger encryption is supported for certificate management and policy enablement with the support of Secure Hash Algorithm 2 (SHA-2). Simple Certificate Enrollment Protocol (SCEP) eases IT administration by enabling automatic certificate management on the device. End users will enjoy a larger, higher-resolution color display and a user experience that is common with Cisco IP Phone 8800 Series desk phones. In addition, roaming between Access Points within the campus will support more seamless voice communications with the 8821's support of Fast Transition (802.11r). This protocol was specifically designed for mobile voice over IP (VoIP) communications devices within Wi-Fi networks. The 8821 supports Cisco and/or third-party XML applications such as push-to-talk.



Protocols  IEEE 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac
Display  2.4-in. (6-cm) color display with 240 x 320 pixel resolution
Dimensions (HxWxD)  5.2 x 2.2 x 0.7 in. (13.2 x 5.6 x 1.7 cm)
Weight  Device 4.4 oz (126 g), battery 1.3 oz (37 g), total = 5.7 oz (163 g)
Battery  Up to 13 hours of voice calling; up to 220 hours standby

 Rechargeable Lithium ion 4.35V, 2060mAh smart battery

Note: Actual battery life varies significantly based on environmental factors, scan mode, and Bluetooth use.
Input power  Phone: 100 to 240 VAC, ~0.2A, and 50 to 60 Hz

 AC adapters (by geographical region)
Frequency bands and operating channels  2.412 to 2.472 GHz (channels 1 to 13)

 5.180 to 5.240 GHz (channels 36 to 48)

 5.260 to 5.320 GHz (channels 52 to 64)

 5.500 to 5.700 GHz (channels 100 to 140)

 5.745 to 5.825 GHz (channels 149 to 165)

 IEEE 802.11d is used to identify available channels

Nonoverlapping channels  2.4 GHz (20-MHz channels): up to 3 channels

 5 GHz (20-MHz channels): up to 24 channels

 5 GHz (40-MHz channels): up to 9 channels

 5 GHz (80-MHz channels): up to 4 channels

Operating modes  Auto (preference to 5 GHz)

 2.4 GHz only

 5 GHzonly

Display  2.4-in. (6-cm) color display with 240 x 320 pixel resolution
Dimensions (HxWxD)  5.2 x 2.2 x 0.7 in. (13.2 x 5.6 x 1.7 cm)
Weight  Device 4.4 oz (126 g), battery 1.3 oz (37 g), total = 5.7 oz (163 g)
Battery  Up to 13 hours of voice calling; up to 220 hours standby

 Rechargeable Lithium ion 4.35V, 2060mAh smart battery

Note: Actual battery life varies significantly based on environmental factors, scan mode, and Bluetooth use.

Input power  Phone: 100 to 240 VAC, ~0.2A, and 50 to 60 Hz

 AC adapters (by geographical region)

Operating temperature  Device: 14 to 122F (-10 to 50C)

 Battery: -4 to 140F (-20 to 60C)

Storage temperature  Device: -22 to 140F (-30 to 60C)

 Battery: -4 to 113F (-20 to 45C)

Relative humidity  10% to 95% (noncondensing)
Vibration  1.5 Grms maximum, 0.1 in. (2.5 mm) double amplitude at 0.887 octaves per minute from 5-500-5 Hz sweep, and 10-minute dwell on three major peaks in each of the three major mutually perpendicular axes
Thermal shock  -22F (-30C) 24 hours; 158F (70C) 24 hours
Altitude  Certified for operation: 0 to 6500 ft (0 to 2 km)
Endurance  Ingress Protection Standard IP67

 MIL-STD-810G Drop and Vibration procedures

Drop specs  Withstand multiple drops of 6 feet (1.8 m) onto concrete. 12 drops (6 faces, 4 edges, face, and bottom)
Headset  Wireless: Bluetooth SW 3.0 HW 4.0

 Wired: 3.5 mm stereo headphone/microphone jack

Connector  Magnetic USB 2.0 On the Go (OTG) connector
Safety  UL 60950-1

 CAN/CSA 60950-1

 EN 60950-1

 IEC 60950-1

 AS/NZS 60950.1

 IEC 60529 (IP 67)

Electromagnetic compatibility and electromagnetic interference (EMC/EMI)  47 CFR Part 15 Class B

 ICES-003 Class B

 EN 55022 Class B

 AS/NZS CISPR 22 Class B

 CISPR 22 Class B

 VCCI Class B

 EN 61000-3-2

 EN 61000-3-3

 KN 22 Class B

 EN 55024

 EN 50082-1

 EN 61000-6-1

 EN61000-6-3

 EN 300386

 EN 60601-1-2

 KN Immunity Series

Telecom  FCC Part 68 (CFR) (HAC)

 NZ PTC 220 DR

 AS/ACIF S004 and AS/ACIF S040 (Australia)

 TIA 810-B and TIA 920-A

 Canada-CS-03-HAC

Radio  USA: FCC Part 15.247 (2.4 GHz), FCC Part 15.407 (5 GHz), and FCC Part 2

 Canada: RSS-210

 Japan: ARIB STD-T66 (2.4 GHz), ARIB STD-T70, and T71 (4.9/5 GHz)

 ETSI: EN 300.328 (2.4 GHz) and EN 301.893 (5 GHz)

 Australia and New Zealand: AS/NZS 4268

 Singapore: IDA TS SRD

 Hong Kong: HKTA1039

RF Exposure  OET-65C (01-01)

 ANSI C95.1 (91)

 RSS-102

 ACA Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 2003

 EN 50360

 EN 301489-1

 EN 301489-17
