AIR-AP3802I-B-K9C-NEW
Details

  • Wireless Access Point
  • 802.11ac Wave 2
  • 802.11a/b/g/n/ac Wave 2
  • Dual Band
  • Internal Antenna
  • Configurable
Category
Stock

Additional information

Brand

Cisco

For organizations paving the way for the 802.11ac Wave 2 standard, the Cisco Aironet 3800 Series is the perfect solution. The access points go beyond getting ready for the changing standards, providing the ultimate in flexibility and versatility. For large enterprise organizations that rely on Wi-Fi to engage with customers, the 3800 Series is a hands-off product that's intelligent enough to make decisions based on end-device activities and usage. This automation allows you to devote time to other pressing matters, secure in the knowledge that your Wi-Fi network is performing to its utmost potential. The Aironet 3800 Series is packed with the features and capabilities that have made Cisco the industry leader, at a price point that is ideal for managing wireless growth, capacity, and coverage gaps in dense indoor environments.

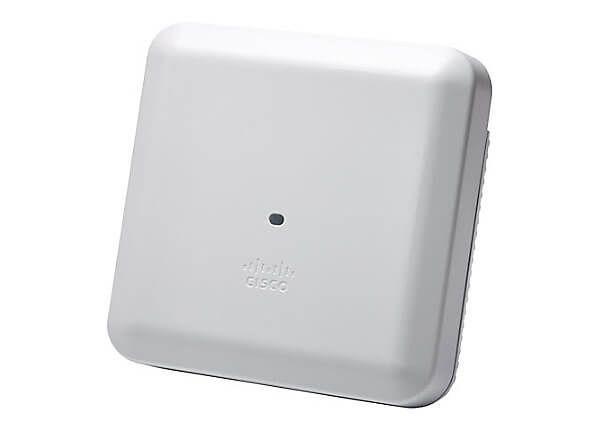

Cisco AIR-AP3802I-B-K9C Access Point Overview



Description 802.11ac Wave 2 AP w/CleanAir, 4x4:3, Mod, Internal Antenna, mGig, B Regulatory Domain, Configurable
Features 4x4 MU-MIMO with three spatial streamsMRC802.11ac beamforming20-, 40-, 80, 160-MHz channels PHY data rates up to 5.2 GbpsPacket aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)802.11 DFSCSD support
Interfaces 2 Ethernet ports100/1000/2500/5000 Multigigabit Ethernet (RJ-45)CAT 5e calling higher-quality 10GBASE-T (CAT 6/6a) cabling100/1000BASE-T autosensing (RJ-45 - AUX port)Management console port (RJ-45)
Dimensions (W x L x H) 8.66 x 8.68 x 2.46 in. (22 x 22 x 6.25 cm)
Weight 4.6 lb (2.09 kg)
Type Wireless access point
Form Factor External
Connectivity Technology Wireless
Data Transfer Rate 5.2 Gbps
Data Link Protocol IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Compliant Standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ad (LACP)
Status Indicators Boot state, Error, Status
Features 4T4R MIMO technology, Auto-sensing per device, Beamforming technology, CleanAir technology, ClientLink 4.0 technology, Cross AP Noise Reduction, Cyclic shift diversity (CSD), DFS support, High Density Experience (HDX), Link Aggregation Control Protocol (LACP), Maximum Ratio Combining (MRC), MU-MIMO technology, Optimized AP Roaming, Packet aggregation A-MPDU, Packet aggregation A-MSDU
Wireless Protocol 802.11a/b/g/n/ac Wave 2
Power Over Ethernet (PoE) PoE
Wi-Fi Bands 2.4 GHz, 5 GHz
Qty 1
Type Management
Connector Type RJ-45
Antenna Form Factor Internal
Compatibility PC
Manufacturer Cisco Systems
Packaged Quantity 1
Product Line Cisco Aironet
Model 3802I (Config)
Brand Cisco
Type Cisco Unified Wireless Network Software Release 8.2.MR1 or later
Type Spatial streams
Value 3
Width 8.7 in
Depth 8.7 in
Height 2.5 in
Ruggedized Design Indoor
