AIR-AP3802I-B-K9-NEW
Details
  • Wireless access point
  • 802.11ac Wave 2
  • Wi-Fi
  • Dual Band
  • Internal Antenna
Category
Stock

Additional information

Brand

Cisco

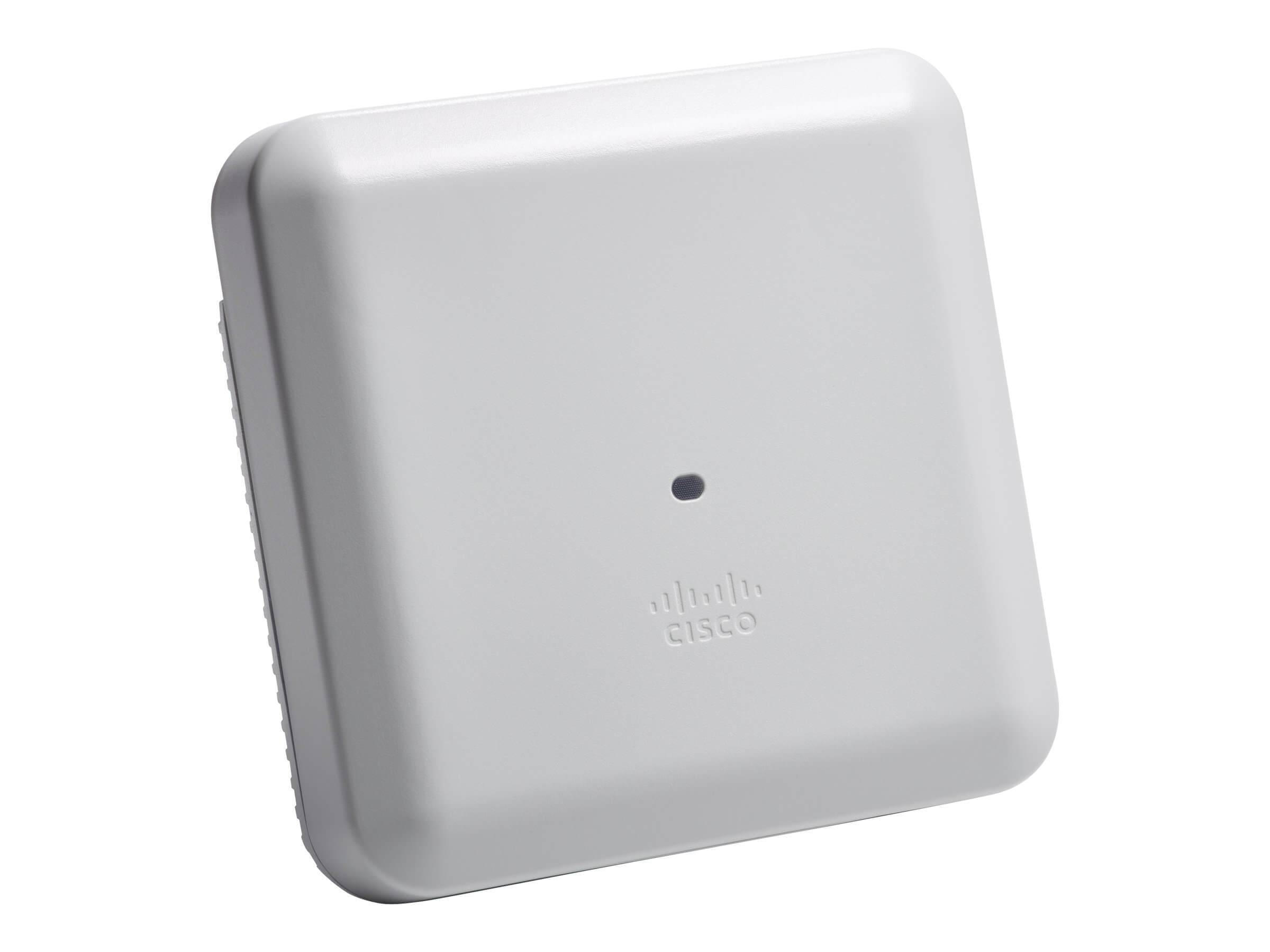

Set up Flexible & Versatile Work Environment with Cisco AIR-AP3802I-B-K9

Cisco AIR-AP3802I-B-K9 Access Point is built on the 802.11ac Wave 2 standard and features ultimate flexibility and versatility. Especially suitable for large enterprises with Wi-Fi dependency for customer engagement, the 3800 series access point is a hands-off product and intelligent enough to understand end-device activities and usage. This automation ensures smooth performance of Wi-Fi network with full potential.

Key Benefits of Cisco AIR-AP3802I-B-K9

The Aironet 3800 Series access point has optimum capabilities and power to manage growth, capacity and coverage gaps in dense indoor environments.



Product Code AIR-AP3802I-B-K9
Antennas Internal Antennas
Interfaces -2 Ethernet ports
-100/1000/2500/5000 Multigigabit Ethernet (RJ-45)
-CAT 5e cabling
-Higher-quality 10GBASE-T (CAT 6/6a) cabling
-100/1000BASE-T autosensing (RJ-45 - AUX port)
-Management console port (RJ-45)
Features -4x4 MU-MIMO with three spatial streams
-MRC
-802.11ac beamforming
-20-, 40-, 80, 160-MHz channels
-PHY data rates up to 5.2 Gbps
-Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
-802.11 DFS
-CSD support
Regulatory Domain B (B regulatory domain):
- 2.412 to 2.462 GHz; 11 channels
- 5.180 to 5.320 GHz; 8 channels
- 5.500 to 5.720 GHz; 12 channels
- 5.745 to 5.825 GHz; 5 channels
System - 1024 MB DRAM
- 256 MB flash
Dimensions (W x L x H) 8.66 x 8.68 x 2.46 in. (22 x 22 x 6.25 cm)



Cisco AIR-AP3802I-B-K9 Access Point Technical Specification



Detail 802.11ac Wave 2 AP w/CleanAir, 4×4:3, Mod, Internal Antenna, mGig, B Regulatory Domain
Regulatory Domain B (B regulatory domain):
– 2.412 to 2.462 GHz; 11 channels
– 5.180 to 5.320 GHz; 8 channels
– 5.500 to 5.720 GHz; 12 channels
– 5.745 to 5.825 GHz; 5 channels
Software and supported wireless LAN controllers Cisco Unified Wireless Network Software Release 8.2.MR1 or later
Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller
Cisco IOS XE Software Release 16.3 – Target Q3 CY2016
Cisco Catalyst 3850 Series and 3650 Series Switches
802.11n version 2.0 (and related) capabilities 4×4 MIMO with three spatial streams
Maximal ratio combining (MRC)
802.11n and 802.11a/g beamforming
20- and 40-MHz channels
PHY data rates up to 450 Mbps (40 MHz with 5 GHz).
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 dynamic frequency selection (DFS)
Cyclic shift diversity (CSD) support
802.11ac Wave 1 capabilities 4×4 MIMO with three spatial streams
MRC
802.11ac beamforming
20-, 40-, and 80-MHz channels
PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 DFS
CSD support
802.11ac Wave 2 capabilities 4×4 MU-MIMO with three spatial streams
MRC
802.11ac beamforming
20-, 40-, 80, 160-MHz channels
PHY data rates up to 5.2 Gbps
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 DFS
CSD support
Integrated antenna Flexible radio (either 2.4 GHz or 5 GHz)
2.4 GHz, gain 4 dBi, internal antenna, omnidirectional in azimuth
5 GHz, gain 6 dBi, internal directional antenna, elevation plane beamwidth 90
Dedicated 5-GHz radio
5 GHz, gain 5 dBi, internal antenna, omnidirectional in azimuth
Interfaces 2 Ethernet ports
100/1000/2500/5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz
CAT 5e cabling
Higher-quality 10GBASE-T (CAT 6/6a) cabling
100/1000BASE-T autosensing (RJ-45 – AUX port)
Management console port (RJ-45)
Indicators Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions (W x L x H) 8.66 x 8.68 x 2.46 in. (22 x 22 x 6.25 cm),
Weight 4.6 lb (2.09 kg)
Input power requirements 802.3at PoE+, Cisco Universal Power over Ethernet (Cisco UPOE)
802.3at power injector (AIR-PWRINJ6=)
50W power supply (AIR-PWR-50=)
Power draw 30W at the PSE with all features enabled except for the USB 2.0 port
34W at the PSE with the USB 2.0 port enabled
Environmental Cisco Aironet 3800i
Nonoperating (storage) temperature: -22 to 158F (-30 to 70C)
Nonoperating (storage) altitude test: 25C, 15,000 ft.
Operating temperature: 32 to 104F (0 to 40C)
Operating humidity: 10% to 90% percent (noncondensing)
Operating altitude test: 40C, 9843 ft.
System memory 1024 MB DRAM
256 MB Flash
