AIR-AP2802I-B-K9C-NEW
Details
  • Wireless access point
  • Configurable
  • 802.11ac Wave 2
  • Wi-Fi
  • Dual Band
Category
Stock

Additional information

Brand

Cisco

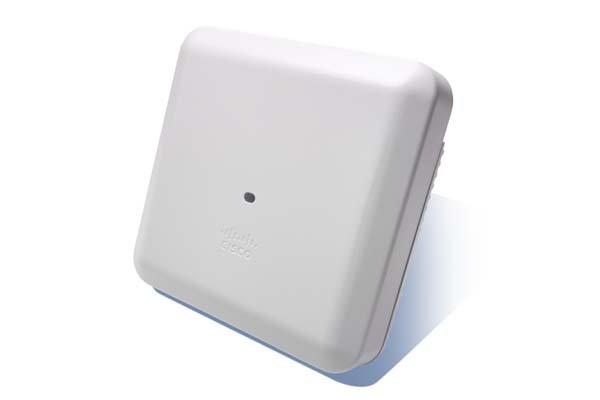

Cisco AIR-AP2802I-B-K9C Access Point Technical Specifications



Software  Cisco Unified Wireless Network Software Release 8.2.111.0 or later
Supported Wireless LAN Controllers Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller Cisco Catalyst 3850 Series Switches, Cisco Catalyst 3650 Series SwitchesCisco Mobility Express
802.11n Version 2.0 (and related) Capabilities 4×4 MIMO with three spatial streams Maximal ratio combining (MRC) 802.11n and 802.11a/g beamforming 20- and 40-MHz channels PHY data rates up to 450 Mbps (40 MHz with 5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)802.11 dynamic frequency selection (DFS) Cyclic shift diversity (CSD) support
802.11ac Wave 1 Capabilities 4×4 MIMO with three spatial streams MRC802.11ac beamforming 20-, 40-, and 80-MHz channels PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)802.11 DFSCSD support
802.11ac Wave 2 Capabilities 802.11ac Wave 2 capabilities 4×4 MU-MIMO with three spatial streams MRC802.11ac beamforming 20-, 40-, 80, 160-MHz channels PHY data rates up to 5.2 Gbps Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 DFSCSD support
Integrated Antenna Integrated Antenna Flexible radio (either 2.4 GHz or 5 GHz)

2.4 GHz, gain 4 dBi, internal antenna, omnidirectional in azimuth 5 GHz, gain 6 dBi, internal directional antenna, elevation plane beamwidth 90
Dedicated 5-GHz radio

5 GHz, gain 5 dBi, internal antenna, omnidirectional in azimuth

Interfaces

2802I/E

  • 2×100/1000BASE-T autosensing (RJ-45)

Management console port (RJ-45)USB 2.0 (enabled via future software)

Indicators Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions (W x L x H) Access point (without mounting brackets): 2802I: 8.66″ x 8.68″ x 2.17″
Weight 3.53 lb (1.6 kg)
Input Power Requirements 802.3at PoE+, Cisco Universal PoE (Cisco UPOE) 802.3 at power injector (AIR-PWRINJ6)
Power Draw

26W at the PSE with all features enabled except for the USB 2.0 port. 30W at the PSE with the USB 2.0 port enabled
Environmental

Nonoperating (storage) temperature: -22 to 158F (-30 to 70C)

Nonoperating (storage) altitude test: 25C, 15,000 ft.

Operating temperature: 32 to 104F (0 to 40C)

Operating humidity: 10% to 90% (noncondensing)

Operating altitude test: 40C, 9843 ft

System Memory 1024 MB DRAM256 MB flash
