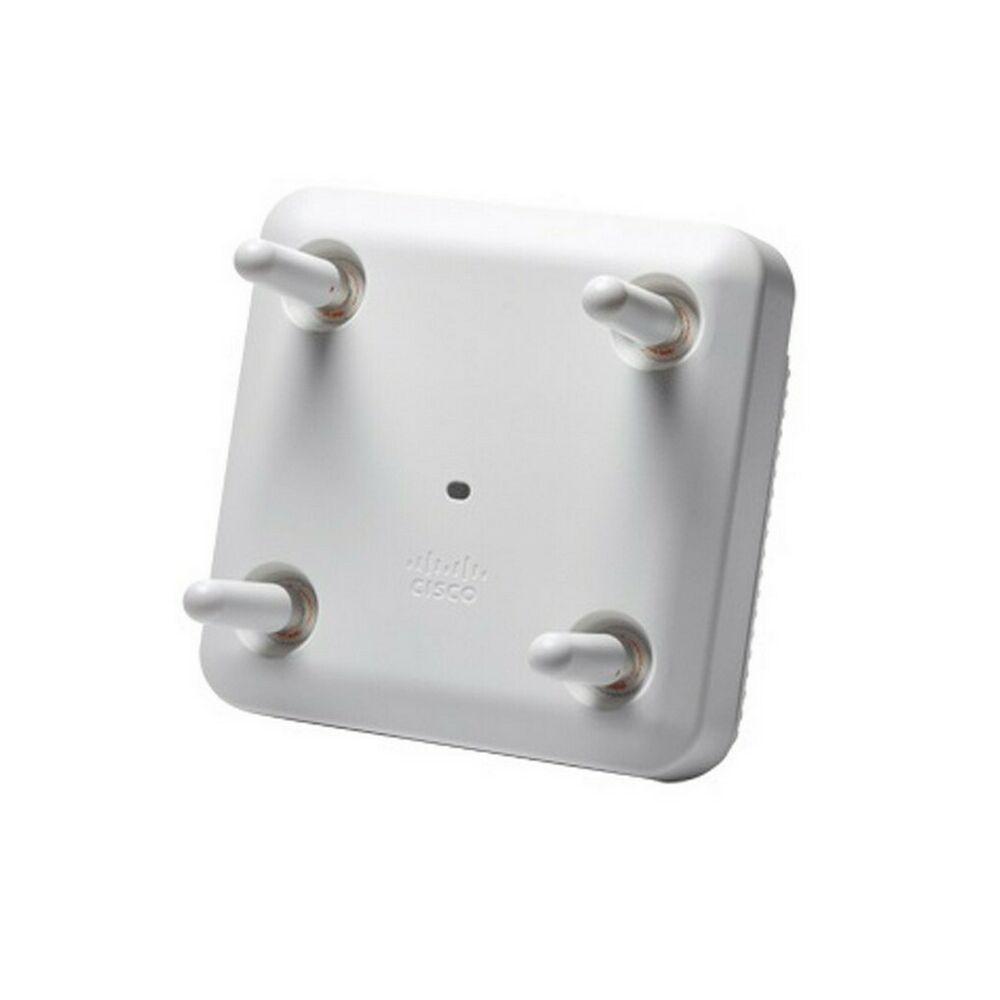

AIR-AP2802E-B-K9-NEW
Details
  • Wireless access point
  • 802.11ac Wave 2
  • Wi-Fi
  • Dual Band
  • External Antenna (Sold separately)
Category
Stock

Additional information

Brand

Cisco


Flexible and Versatile Cisco Air-Ap2802e-B-K9 Access Point

Cisco Air-Ap2802e-B-K9 Access Point is the perfect solution for organizations paving the way for the 802.11ac Wave 2 standard. This access point provides the ultimate compatibility, flexibility and versatility.

Key Benefits of Cisco Air-Ap2802e-B-K9 Access Point

Cisco Air-Ap2802e-B-K9 Access Point meets the requirements of the larger enterprise organizations that rely on Wi-Fi heavily to engage with customers. The Cisco Aironet 2800 series is a hands-off product to make intelligent decisions on the basis of end-device activities and usage. As a result of this automation, its users can concentrate on other important work areas as being sure about smooth-running of the Wi-Fi network.

Cisco Air-Ap2802e-B-K9 Access Point is built with all necessary capabilities to manage wireless growth and coverage gaps in dense indoor environment. Top of all, it's available at cheap price.



Approved External Antennas For Use With 2802E

 Cisco AIR-AP2802E-B-K9 Access Point Overview



Frequency band and 20-MHz operating channels B (B regulatory domain):

- 2.412 to 2.462 GHz; 11 channels

- 5.180 to 5.320 GHz; 8 channels

- 5.500 to 5.720 GHz; 12 channels

- 5.745 to 5.825 GHz; 5 channels
Antenna External Antenna
Features - 4x4 MU-MIMO with three spatial streams

- MRC

- 802.11ac Beamforming

- 20-, 40-, 80, 160-MHz channels

- PHY data rates up to 5.2 Gbps

- Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

- 802.11 DFS

- CSD support
Interfaces - 2 x 100/1000BASE-T autosensing (RJ-45)

- Management console port (RJ-45)

- USB 2.0 (enabled via future software)
System memory - 1024 MB DRAM

- 256 MB flash
Dimensions (W x L x H) 8.66 x 8.77 x 2.50 in.
Net Weight 4.6 lb (2.09 kg)



Software Cisco Unified Wireless Network Software Release 8.2.111.0 or laterCisco IOSXE Software Release 16.3
Supported wireless LAN controllers Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless ControllerCisco Catalyst 3850 Series Switches, Cisco Catalyst 3650 Series SwitchesCisco Mobility Express
802.11n version 2.0 (and related) capabilities 4×4 MIMO with three spatial streamsMaximal ratio combining (MRC)802.11n and 802.11a/g beamforming20- and 40-MHz channelsPHY data rates up to 450 Mbps (40 MHz with 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)802.11 dynamic frequency selection (DFS)Cyclic shift diversity (CSD) support
802.11ac Wave 1 capabilities 4×4 MIMO with three spatial streamsMRC802.11ac beamforming20-, 40-, and 80-MHz channelsPHY data rates up to 1.3 Gbps (80 MHz in 5 GHz)Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)802.11 DFSCSD support
802.11ac Wave 2 capabilities 4×4 MU-MIMO with three spatial streamsMRC802.11ac beamforming20-, 40-, 80, 160-MHz channelsPHY data rates up to 5.2 GbpsPacket aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)802.11 DFSCSD support
Integrated antenna Flexible radio (either 2.4 GHz or 5 GHz)

2.4 GHz, gain 4 dBi, internal antenna, omnidirectional in azimuth5 GHz, gain 6 dBi, internal directional antenna, elevation plane beamwidth 90
Dedicated 5-GHz radio

5 GHz, gain 5 dBi, internal antenna, omnidirectional in azimuth

External antenna (sold separately) 2802e Series access points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)Cisco offers the industry’s broadest selection ofantennas, delivering optimal coverage for a variety of deployment scenarios
Smart antenna connector Available on the 2802e Series access points onlyRequires the AIR-CAB002-DART-R= 2 ft smart antenna connector to RP-TNC connectors to connect a second antenna to the access pointRequired when running the flexible radio as either a second 5-GHz serving radio or Wireless Security Monitoring radio
Interfaces 2802I/E
   2×100/1000BASE-T autosensing (RJ-45)

Management console port (RJ-45)USB 2.0 (enabled via future software)

Indicators Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions (W x L x H) Access point (without mounting brackets): 2802I: 8.66″ x 8.68″ x 2.17″, 2802E: 8.66″ x 8.77″ x 2.50″
Weight Cisco Aironet 2802i

3.53 lb (1.6 kg)
Cisco Aironet 2802e

4.6 lb (2.09 kg)

Input power requirements 802.3at PoE+, Cisco Universal PoE (Cisco UPOE)802.3at power injector (AIR-PWRINJ6=)
Power draw 26W at the PSE with all features enabled except for the USB 2.0 port30W at the PSE with the USB 2.0 port enabled
Environmental Cisco Aironet 2802i

Nonoperating (storage) temperature: -22 to 158F (-30 to 70C)Nonoperating (storage) altitude test: 25C, 15,000 ft.Operating temperature: 32 to 104F (0 to 40C)Operating humidity: 10% to 90% (noncondensing)Operating altitude test: 40C, 9843 ft.
Cisco Aironet 2802e

Nonoperating (storage) temperature: -22 to 158F (-30 to 70C)Nonoperating (storage) altitude test: 25C, 15,000 ft.Operating temperature: -4 to 122F (-20 to 50C)Operating humidity: 10% to 90% (noncondensing)Operating altitude test: 40C, 9843 ft.

System memory 1024 MB DRAM256 MB flash
