WS-C3850-48T-E-NEW
Details
  • Stackable 48 10/100/1000 Ethernet ports
  • with 350WAC power supply
  • IP Services feature set (IPv4 and IPv6)
  • Layer 3
  • 1 RU
Category
Stock

Additional information

Brand

Cisco

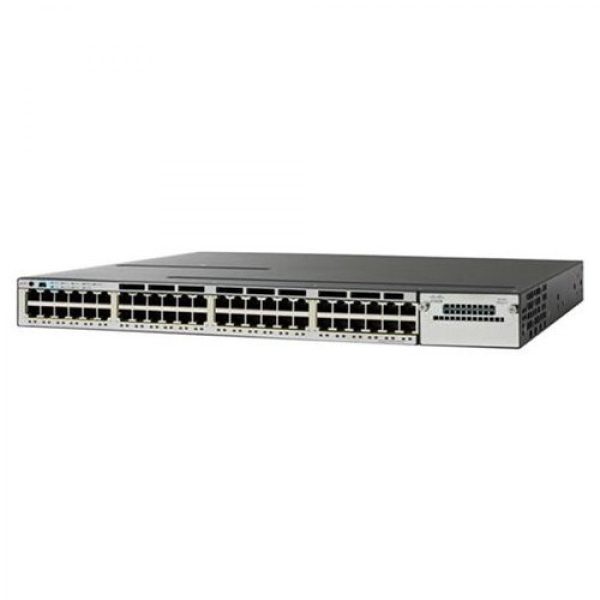

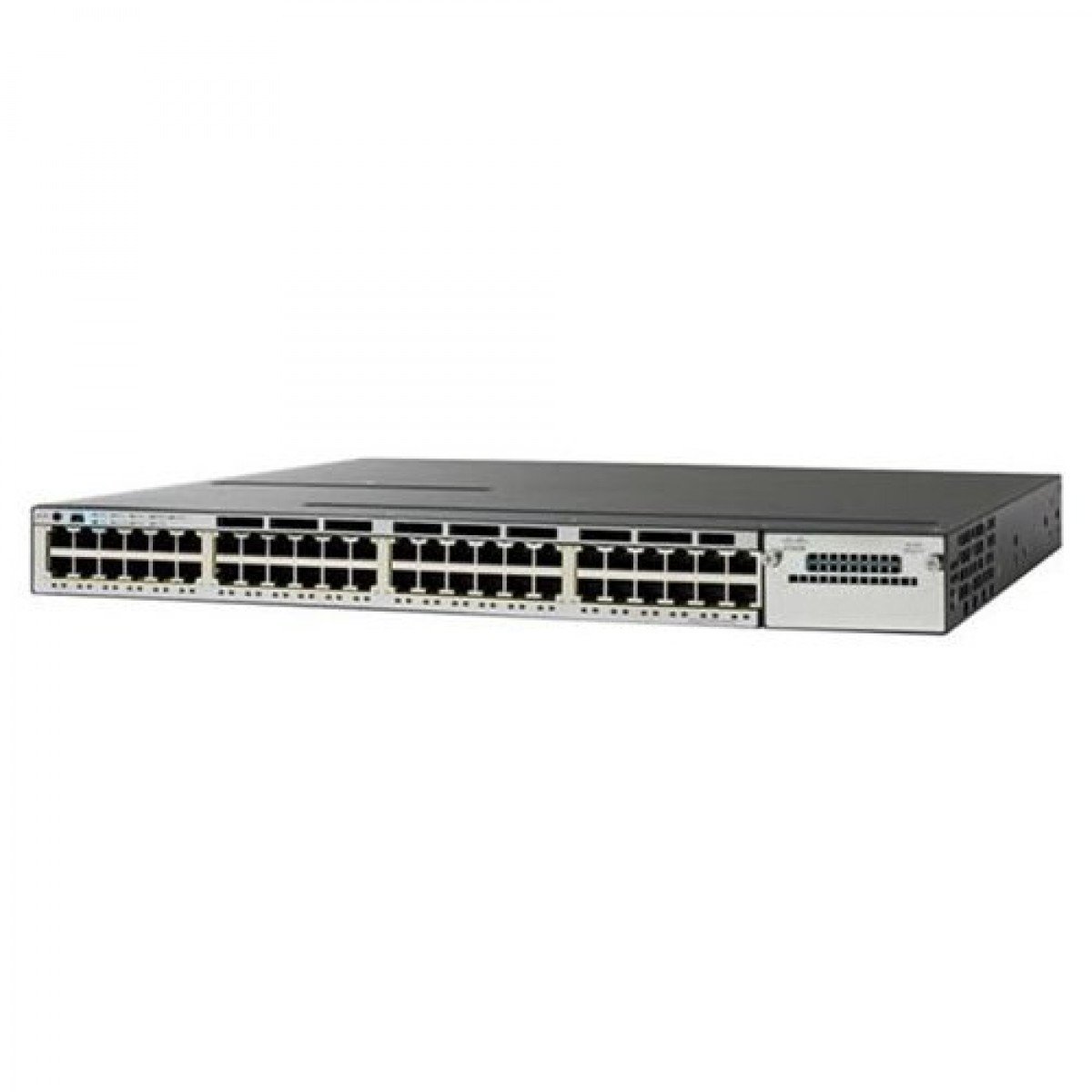

Cisco WS-C3850-48T-E Switch Overview



The Cisco Catalyst 3850 series is the enterprise-class stackable access-layer switches that provide full convergence between wired and wireless on a single platform. Cisco's Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. The Cisco Catalyst 3850 series switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), modular and field-replaceable network modules, redundant fans and power supplies.



Enclosure Type 1 RU
Feature Set IP Service
Network SFP uplink module selection C3850-NM-4-1G

C3850-NM-2-10G

C3850-NM-4-10G
Ports 48 x 10/100/1000
Maximum stacking number 9
Stack bandwidth 480 Gbps
Forwarding Performance 130.95 Mpps
Switching Capacity 176 Gbps
RAM 4 G
Flash Memory 2 G
Number of AP per switch/stack 100
Number of wireless clients per switch/stack 2000
Dimensions 44.5 cm x 44.5 cm x 4.45 cm
Network management Interface  Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
 Management console port: RJ-45-to-DB9 cable for PC connections
Available PoE Power None
Switching Capacity 176Gbps
Maximum stacking number up to 9 switches with same IOS feature set in same series
Stack Bandwidth 480Gbps
Forwarding Performance 130.95Mpps
FNF (Flexible NetFlow)  entries 48,000 flows
Maximum VLANs IDs 4000
MAC Address Table Size 32K
CPU Multicore CPU
RAM 4 G
Flash Memory 2 G
Number of AP per switch/stack 100
Number of wireless clients per switch/stack 2000
Total number of WLANs per switch 64
Wireless bandwidth per switch up to 40Gbps
Supported Aironet AP series 3600, 3500, 2600, 1600, 1260, 1140, 1040
Console ports USB (Type-B), Ethernet (RJ-45)
Expansion Slot(s) 1 network module slot and 1 power redundant slot
Network Modules Selection  C3850-NM-4-1G: 4 x 1G uplinks network module
 C3850-NM-4-10G: 4 x 10G uplinks network module
C3850-NM-2-10G: 2 x 10G or 4 x 1G uplinks network module
Stacking cable STACK-T1-50CM StackWise stacking cable with a 0.5 m length
STACK-T1-1M StackWise stacking cable with a 1.0 m length
STACK-T1-3M StackWise stacking cable with a 3.0 m length
Stack Power Cable (recommended) CAB-SPWR-30CM stack power cable with a 30CM length
CAB-SPWR-150CM stack power cable with a 150CM length
Power supply PWR-C1-350WAC
Power Device Power supply – redundant – plug-in module
Power Redundancy optional
Voltage range (Auto) 100V-240V
Power Consumption of standalone(in Watts) 127.24 (Max)
Width 17.5 Inches (44.5 cm)
Depth 17.7 Inches (44.5 Cm)
Height 1.75 Inches (4.45 cm)
Weight 17.0 Pounds (7.7Kg)
Rack Mounting Kit optional
MTBF in hours 303,660
Compliant Standards  IEEE 802.1D Spanning Tree Protoco
 IEEE 802.1p CoS Prioritization
 IEEE 802.1Q VLAN
 IEEE 802.1s
 IEEE 802.1w
 IEEE 802.1X
 IEEE 802.1X-Rev
IEEE 802.11
 IEEE 802.1ab (LLDP)
 IEEE 802.3ad
 IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports

 IEEE 802.3 10BASE-T
 IEEE 802.3u 100BASE-TX
 IEEE 802.3ab 1000BASE-T
 IEEE 802.3z 1000BASE-X
 RMON I and II standards
 SNMP v1, v2c, and v3
IEEE 802.3af and IEEE 802.3at

System software IOS IP Services
EnergyWise license ENERGY-MGMT, ENERGY-MGT-100-K9
Access Point Licenses L-LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (e-delivery)
L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery)
LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (paper license)
LIC-CTIOS-1A: 1 access point adder license for the Cisco IOS Software based wireless controller (paper license)
Features EEM  RPS Support   IP service-level agreements (SLAs)   Advanced IP unicast routing protocols  Jumbo Frames

 VLANS Voice Vlan VTPv2 CDPv2 LLDP  802.3ad LACP and PAgP  PVST/PVST+  802.1W/802.1S

Port Fast/Uplink Fast  Dynamic Trunking Protocol (DTP)  port CoS Trust and Override  Trusted Boundary

 ACL Classification ingress Policing  Auto QoS  Per VLAN policies  802.1p queues  Scheduling  Priority

Queuing  Configure CoS Priority Queues Configure CoS Priority Queues  Configure Queue Weights  Configure

Buffers and Thresholds Class & Policy Maps  Modify CoS and DSCP Mapping  Weighted Tail Drop  IGMPv1,v2,v3

and MLDv1, v2  DHCP server  DSCP transparency  HSRP, VRRP, BLGP  RIPv1, v2 EIGRP, PIM  OSPF, OSPFv3,EIGRPv6, BGPv4, IS-ISv4   VRF-lite   PIM-SM/DM, PIM sparse-dense mode, SSM  Flexible Netflow

Advanced Network security  Port security  DHCP snooping Dynamic ARP inspection (DAI)  IP source guard The Unicast Reverse Path Forwarding (uRPF)
 Bidirectional data support on a SPAN  User authentication
 Private VLAN  Router and VLAN ACLs   complete identity and security
 Multidomain authentication  MAC address notification
 IGMP filtering  Cisco security VLAN ACL
 Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3)
 Port-based ACLs  TrustSec SXP  IEEE 802.1ae
 TACACS+ and RADIUS authentication  Cisco standard and extended IP security router ACLs
  Bridge protocol data unit (BPDU) Guard
 Spanning Tree Root Guard (STRG)  Wireless end-to-end security
Management BRIDGE-MIB CISCO-AUTH-FRAMEWORK-MIB
CISCO-BGP4-MIB, BGP4-MIB CISCO-BRIDGE-EXT-MIB
CISCO-BULK-FILE-MIB CISCO-CABLE-DIAG-MIB
CISCO-CALLHOME-MIB CISCO-CEF-MIB
CISCO-CIRCUIT-INTERFACE-MIB
CISCO-ENTITY-VENDORTYPE-OID-MIB
CISCO-CONTEXT-MAPPING-MIB
CISCO-DEVICE-LOCATION-MIB CISCO-DHCP-SNOOPING-MIB
CISCO-EIGRP-MIB
CISCO-EMBEDDED-EVENT-MGR-MIB
CISCO-ENTITY-FRU-CONTROL-MIB CISCO-ENTITY-SENSOR-MIB
ENTITY-MIB CISCO-ERR-DISABLE-MIB
CISCO-CONFIG-COPY-MIB CISCO-FLOW-MONITOR-MIB
CISCO-FTP-CLIENT-MIB CISCO-HSRP-EXT-MIB
CISCO-HSRP-MIB CISCO-IETF-ISIS-MIB
CISCO-IF-EXTENSION-MIB CISCO-IGMP-FILTER-MIB
CISCO-CONFIG-MAN-MIB CISCO-IP-CBR-METRICS-MIB
CISCO-IPMROUTE-MIB CISCO-IP-STAT-MIB
CISCO-IP-URPF-MIB CISCO-L2L3-INTERFACE-CONFIG-MIB
CISCO-LAG-MIB CISCO-LICENSE-MGMT-MIB
CISCO-MAC-AUTH-BYPASS-MIB CISCO-MAC-NOTIFICATION-MIB
CISCO-MDI-METRICS-MIB CISCO-FLASH-MIB CISCO-OSPF-MIB
CISCO-OSPF-TRAP-MIB CISCO-PAE-MIB CISCO-PAGP-MIB
CISCO-PIM-MIB CISCO-PING-MIB CISCO-PORT-QOS-MIB
CISCO-PORT-SECURITY-MIBCISCO-PORT-STORM-CONTROL-MIB
CISCO-POWER-ETHERNET-EXT-MIB CISCO-PRIVATE-VLAN-MIB
CISCO-PROCESS-MIB CISCO-PRODUCTS-MIBCISCO-RF-MIB
CISCO-RTP-METRICS-MIB CISCO-RTTMON-MIB
CISCO-SMART-INSTALL-MIB

CISCO-SNMP-TARGET-EXT-MIB CISCO-STACKMAKER-MIB
CISCO-MEMORY-POOL-MIB CISCO-STP-EXTENSIONS-MIB
CISCO-SYSLOG-MIB CISCO-TCP-MIB CISCO-UDLDP-MIB
CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB CISCO-VLAN-MEMBERSHIP-MIB CISCO-VTP-MIB EtherLike-MIB
HC-RMON-MIB IEEE8021-PAE-MIB IEEE8023-LAG-MIB
IF-MIB IGMP-MIB IGMP-STD-MIB IP-FORWARD-MIB
IP-MIB IPMROUTE-STD-MIB LLDP-EXT-MED-MIB
LLDP-MIB NOTIFICATION-LOG-MIB
OLD-CISCO-MEMORY-MIB CISCO-CDP-MIB
POWER-ETHERNET-MIB RMON2-MIB
RMON-MIB SNMP-COMMUNITY-MIB SNMP-FRAMEWORK-MIB
SNMP-MPD-MIB SNMP-NOTIFICATION-MIB SNMP-PROXY-MIB
SNMP-TARGET-MIB SNMP-USM-MIB SNMPv2-MIB
SNMP-VIEW-BASED-ACM-MIB TCP-MIB UDP-MIB
CISCO-IMAGE-MIB CISCO-STACKWISE-MIB
AIRESPMACE-WIRELESS-MIB CISCO-LWAPP-IDS-MIB
CISCO-LWAPP-AP-MIB CISCO-LWAPP-CCX-RM-MIB
CISCO-LWAPP-CLIENT-ROAMING-MIB
CISCO-LWAPP-DOT11-CCX-CLIENT-DIAG-MIB
CISCO-LWAPP-DOT11-CCX-CLIENT-MIB
CISCO-LWAPP-DOT11-CLIENT-CCX-REPORTS-MIB
CISCO-LWAPP-DOT11-CLIENT-MIB CISCO-LWAPP-DOT11-MIB
CISCO-LWAPP-DOWNLOAD-MIB CISCO-LWAPP-LINKTEST-MIB
CISCO-LWAPP-MFP-MIB CISCO-LWAPP-MOBILITY-EXT-MIB
CISCO-LWAPP-QOS-MIB CISCO-LWAPP-REAP-MIB
CISCO-LWAPP-ROGUE-MIB CISCO-LWAPP-RRM-MIB
CISCO-LWAPP-SI-MIB CISCO-LWAPP-TSM-MIB
CISCO-LWAPP-WLAN-MIB CISCO-LWAPP-WLAN-SECURITY-MIB

Operating temperature up to 5000 ft (1500 m) 23F to 113F (-5C to +45C)
Operating temperature up to 10,000 ft (3000 m) 23F to 104F (-5C to +40C)
Short-term exception at sealevel with single fan failure 23F to 113F (-5C to +45C)
Short-term exception up to 5000 feet (1500 m) 23F to 122F (-5C to 50C)
Short-term exception up to 10,000 feet (3000 m) 23F to 113F (-5C to 45C)
Operating temperature up to 6000 ft (1800 m) 23F to 113F (-5C to +45C)
Operating temperature up to 10,000 ft (3000 m) 23F to 104F (-5C to +40C)
Operating temperature up to 13,000 ft (4000m) 23F to 95F (-5C to 35C)
Short-term exception up to 6,000 feet (1800 m) 23F to 131F (-5C to +55C)
Short-term exception up to 10,000 feet (3000 m) 23F to 122F (-5C to +50C)
Short-term exception up to 13,000 feet (4000 m) 23F to 113F (-5C to +45C)
Short-term exception at sealevel with single fan failure 23F to 113F (-5C to +45)
Storage environment -40F to 160F (-40C to 70C)
Operating altitude Up to 13,000 Feet (Up to 4000 Meters)
Storage altitude Up to 15,000 Feet (Up to 4573 Meters)
Operating relative humidity 10% to 95% noncondensing
Storage relative humidity 10% to 95% noncondensing
