WS-C3850-24T-L-NEW
Details
  • Stackable 24 10/100/1000 Ethernet ports
  • with 350WAC power supply
  • LAN Base feature set
  • 1 RU
  • (StackPower cables need to be purchased separately)
Category
Stock

Additional information

Brand

Cisco

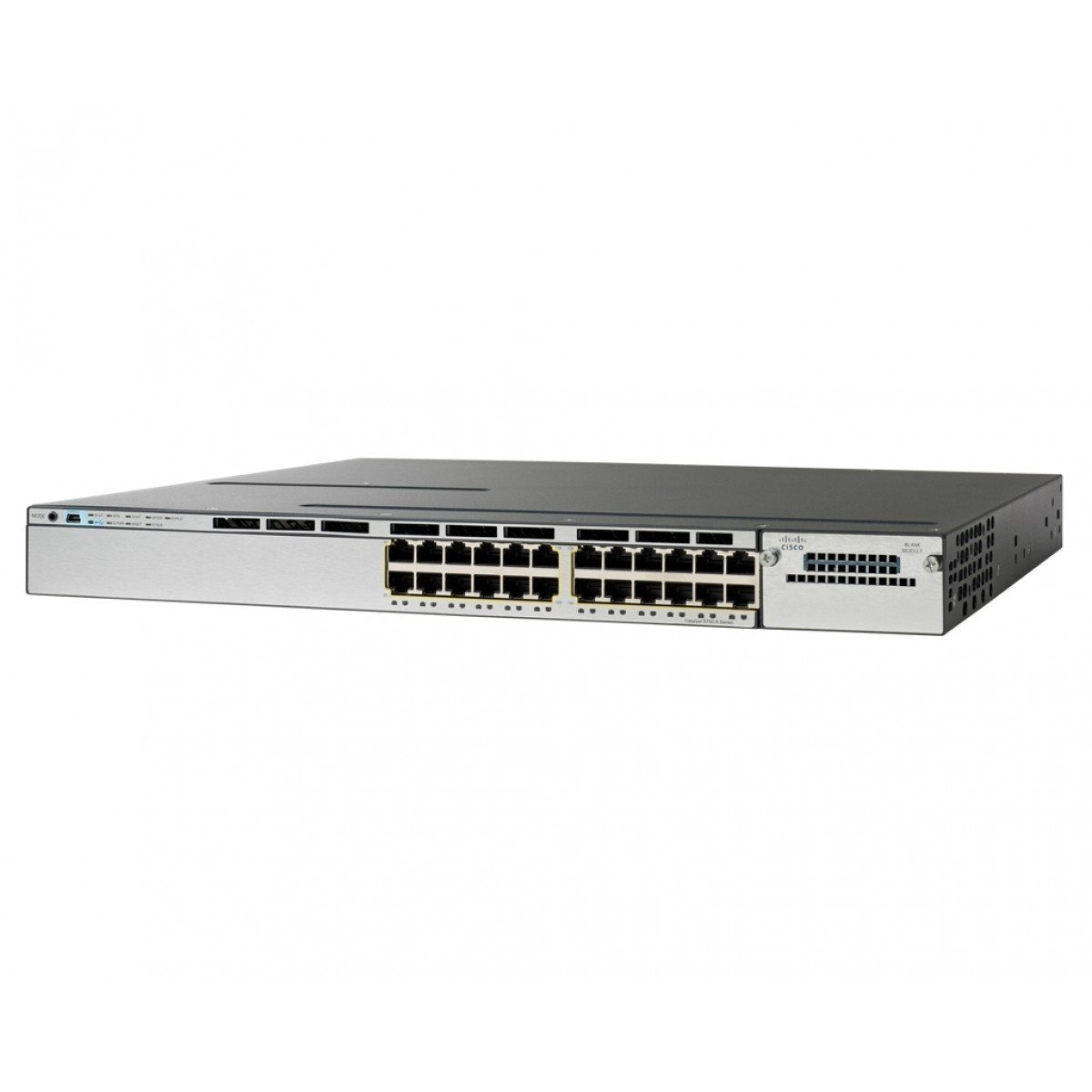

Cisco WS-C3850-24T-L Switch

Cisco WS-C3850-24T-L Switch is a superior option for advanced converged wired/WiFi networks within medium-to-large scale operations. Designed for organizations with the need for large data pipes - up to 40Gbps per switch - and a single integrated solution for managing their mixed network through a single, powerful architecture.

Key Benefits of Cisco WS-C3850-24T-L Switch

Cisco WS-C3850-24T-L Switch is powered with Cisco's Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC). It can enable uniform wired-wireless policy enforcement, application visibility, flexibility, and application optimization. This is designed to support full IEEE 802.3at Power over Ethernet Plus (PoE+), modular and field-replaceable network modules, redundant fans and power supplies.

Enclosure Type 1 RU
Feature Set LAN Base
Network SFP uplink module selection C3850-NM-4-1G

C3850-NM-2-10G
Ports 24 * 10/100/1000 Ethernet ports
Maximum stacking number 9
Stack bandwidth 480 Gpbs
Switching Capacity 92 Gpbs
RAM 4 GB
Flash Memory 2 GB
Number of AP per switch/stack 100
Number of wireless clients per switch/stack 2000
Dimensions 4.45 cm x 44.5 cm x 45.0 cm
Package Weight 17.49 Kg
Network management Interface  Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
 Management console port: RJ-45-to-DB9 cable for PC connections
Maximum stacking number up to 9 switches with same IOS feature set in same series
Forwarding Performance 68.4Mpps
FNF entries Disabled (IP base license required)
Maximum VLANs IDs 255
MAC Address Table Size 32K
CPU Multicore CPU
Number of AP per switch/stack 100
Number of wireless clients per switch/stack 2000
Total number of WLANs per switch 64
Wireless bandwidth per switch up to 20Gbps
Supported Aironet AP series 3600, 3500, 2600, 1600, 1260, 1140, 1040
Console ports USB (Type-B), Ethernet (RJ-45)
Expansion Slot(s) 1 network module slot and 1 power redundant slot
Network Modules Selection  C3850-NM-4-1G: 4 x 1G uplinks network module
C3850-NM-2-10G: 2 x 10G or 4 x 1G uplinks network module
Stacking cable STACK-T1-50CM StackWise stacking cable with a 0.5 m length
STACK-T1-1M StackWise stacking cable with a 1.0 m length
STACK-T1-3M StackWise stacking cable with a 3.0 m length
Stack Power Cable (recommended) CAB-SPWR-30CM stack power cable with a 30CM length
CAB-SPWR-150CM stack power cable with a 150CM length
Power supply PWR-C1-350WAC
Power Device Power supply – redundant – plug-in module
Power Redundancy optional
Voltage range (Auto) 100V-240V
Power Consumption of standalone(in Watts) 84.97 (max)
Width 17.5 Inches (44.5 cm)
Depth 17.7 Inches (44.5 Cm)
Height 1.75 Inches (4.45 cm)
Weight 15.9 Pounds (7.2Kg)
Rack Mounting Kit optional
MTBF in hours 303,230
Compliant Standards  IEEE 802.1D Spanning Tree Protoco
 IEEE 802.1p CoS Prioritization
 IEEE 802.1Q VLAN
 IEEE 802.1s
 IEEE 802.1w
 IEEE 802.1X
 IEEE 802.1X-Rev
IEEE 802.11
 IEEE 802.1ab (LLDP)
 IEEE 802.3ad
 IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports

 IEEE 802.3 10BASE-T
 IEEE 802.3u 100BASE-TX
 IEEE 802.3ab 1000BASE-T
 IEEE 802.3z 1000BASE-X
 RMON I and II standards
 SNMP v1, v2c, and v3

System software IOS LAN Base (Upgradable)
EnergyWise license ENERGY-MGMT, ENERGY-MGT-100-K9
Software license C3850-24-L-S : LAN Base to IP Base RTU paper license

C3850-24-L-E: LAN Base to IP Services RTU paper license

L-C3850-24-L-S: LAN Base to IP Base RTU electronic license

L-C3850-24-L-E: LAN Base to IP Services RTU electronic license

Access Point Licenses L-LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (e-delivery)
L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery)
LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (paper license)
LIC-CTIOS-1A: 1 access point adder license for the Cisco IOS Software based wireless controller (paper license)
Features RPS Support  Jumbo Frames  VLANS Voice Vlan VTPv2 CDPv2 LLDP  802.3ad LACP and PAgP

 PVST/PVST+  802.1W/802.1S Port Fast/Uplink Fast  Dynamic Trunking Protocol (DTP)  port CoS Trust

and Override  Trusted Boundary  ACL Classification ingress Policing  Auto QoS  Per VLAN policies

 802.1p queues  Scheduling  Priority Queuing  Configure CoS Priority Queues Configure CoS Priority

Queues  Configure Queue Weights  Configure Buffers and Thresholds Class & Policy Maps  Modify CoS

and DSCP Mapping  Weighted Tail Drop  IGMPv1,v2,v3 and MLDv1, v2  DHCP server  DSCP transparency

 HSRP, VRRP, BLGP  RIPv1, v2 EIGRP, PIM  OSPF, OSPFv3, EIGRPv6, BGPv4, IS-ISv4   VRF-lite   PIM-SM/DM,

PIM sparse-dense mode, SSM  Flexible Netflow

Advanced Network security  Port security  DHCP snooping Dynamic ARP inspection (DAI)  IP source guard The Unicast Reverse Path Forwarding (uRPF)
 Bidirectional data support on a SPAN  User authentication
 Private VLAN  Router and VLAN ACLs   complete identity and security
 Multidomain authentication  MAC address notification
 IGMP filtering  Cisco security VLAN ACL
 Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3)
 Port-based ACLs  TrustSec SXP  IEEE 802.1ae
 TACACS+ and RADIUS authentication  Cisco standard and extended IP security router ACLs
  Bridge protocol data unit (BPDU) Guard
 Spanning Tree Root Guard (STRG)  Wireless end-to-end security
Management BRIDGE-MIB CISCO-AUTH-FRAMEWORK-MIB
CISCO-BGP4-MIB, BGP4-MIB CISCO-BRIDGE-EXT-MIB
CISCO-BULK-FILE-MIB CISCO-CABLE-DIAG-MIB
CISCO-CALLHOME-MIB CISCO-CEF-MIB
CISCO-CIRCUIT-INTERFACE-MIB
CISCO-ENTITY-VENDORTYPE-OID-MIB
CISCO-CONTEXT-MAPPING-MIB
CISCO-DEVICE-LOCATION-MIB CISCO-DHCP-SNOOPING-MIB
CISCO-EIGRP-MIB
CISCO-EMBEDDED-EVENT-MGR-MIB
CISCO-ENTITY-FRU-CONTROL-MIB CISCO-ENTITY-SENSOR-MIB
ENTITY-MIB CISCO-ERR-DISABLE-MIB
CISCO-CONFIG-COPY-MIB CISCO-FLOW-MONITOR-MIB
CISCO-FTP-CLIENT-MIB CISCO-HSRP-EXT-MIB
CISCO-HSRP-MIB CISCO-IETF-ISIS-MIB
CISCO-IF-EXTENSION-MIB CISCO-IGMP-FILTER-MIB
CISCO-CONFIG-MAN-MIB CISCO-IP-CBR-METRICS-MIB
CISCO-IPMROUTE-MIB CISCO-IP-STAT-MIB
CISCO-IP-URPF-MIB CISCO-L2L3-INTERFACE-CONFIG-MIB
CISCO-LAG-MIB CISCO-LICENSE-MGMT-MIB
CISCO-MAC-AUTH-BYPASS-MIB CISCO-MAC-NOTIFICATION-MIB
CISCO-MDI-METRICS-MIB CISCO-FLASH-MIB CISCO-OSPF-MIB
CISCO-OSPF-TRAP-MIB CISCO-PAE-MIB CISCO-PAGP-MIB
CISCO-PIM-MIB CISCO-PING-MIB CISCO-PORT-QOS-MIB
CISCO-PORT-SECURITY-MIBCISCO-PORT-STORM-CONTROL-MIB
CISCO-POWER-ETHERNET-EXT-MIB CISCO-PRIVATE-VLAN-MIB
CISCO-PROCESS-MIB CISCO-PRODUCTS-MIBCISCO-RF-MIB
CISCO-RTP-METRICS-MIB CISCO-RTTMON-MIB
CISCO-SMART-INSTALL-MIB

CISCO-SNMP-TARGET-EXT-MIB CISCO-STACKMAKER-MIB
CISCO-MEMORY-POOL-MIB CISCO-STP-EXTENSIONS-MIB
CISCO-SYSLOG-MIB CISCO-TCP-MIB CISCO-UDLDP-MIB
CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB CISCO-VLAN-MEMBERSHIP-MIB CISCO-VTP-MIB EtherLike-MIB
HC-RMON-MIB IEEE8021-PAE-MIB IEEE8023-LAG-MIB
IF-MIB IGMP-MIB IGMP-STD-MIB IP-FORWARD-MIB
IP-MIB IPMROUTE-STD-MIB LLDP-EXT-MED-MIB
LLDP-MIB NOTIFICATION-LOG-MIB
OLD-CISCO-MEMORY-MIB CISCO-CDP-MIB
POWER-ETHERNET-MIB RMON2-MIB
RMON-MIB SNMP-COMMUNITY-MIB SNMP-FRAMEWORK-MIB
SNMP-MPD-MIB SNMP-NOTIFICATION-MIB SNMP-PROXY-MIB
SNMP-TARGET-MIB SNMP-USM-MIB SNMPv2-MIB
SNMP-VIEW-BASED-ACM-MIB TCP-MIB UDP-MIB
CISCO-IMAGE-MIB CISCO-STACKWISE-MIB
AIRESPMACE-WIRELESS-MIB CISCO-LWAPP-IDS-MIB
CISCO-LWAPP-AP-MIB CISCO-LWAPP-CCX-RM-MIB
CISCO-LWAPP-CLIENT-ROAMING-MIB
CISCO-LWAPP-DOT11-CCX-CLIENT-DIAG-MIB
CISCO-LWAPP-DOT11-CCX-CLIENT-MIB
CISCO-LWAPP-DOT11-CLIENT-CCX-REPORTS-MIB
CISCO-LWAPP-DOT11-CLIENT-MIB CISCO-LWAPP-DOT11-MIB
CISCO-LWAPP-DOWNLOAD-MIB CISCO-LWAPP-LINKTEST-MIB
CISCO-LWAPP-MFP-MIB CISCO-LWAPP-MOBILITY-EXT-MIB
CISCO-LWAPP-QOS-MIB CISCO-LWAPP-REAP-MIB
CISCO-LWAPP-ROGUE-MIB CISCO-LWAPP-RRM-MIB
CISCO-LWAPP-SI-MIB CISCO-LWAPP-TSM-MIB
CISCO-LWAPP-WLAN-MIB CISCO-LWAPP-WLAN-SECURITY-MIB

Operating temperature up to 5000 ft (1500 m) 23F to 113F (-5C to +45C)
Operating temperature up to 10,000 ft (3000 m) 23F to 104F (-5C to +40C)
Short-term exception at sealevel with single fan failure 23F to 113F (-5C to +45C)
Short-term exception up to 5000 feet (1500 m) 23F to 122F (-5C to 50C)
Short-term exception up to 10,000 feet (3000 m) 23F to 113F (-5C to 45C)
Operating temperature up to 6000 ft (1800 m) 23F to 113F (-5C to +45C)
Operating temperature up to 10,000 ft (3000 m) 23F to 104F (-5C to +40C)
Operating temperature up to 13,000 ft (4000m) 23F to 95F (-5C to 35C)
Short-term exception up to 6,000 feet (1800 m) 23F to 131F (-5C to +55C)
Short-term exception up to 10,000 feet (3000 m) 23F to 122F (-5C to +50C)
Short-term exception up to 13,000 feet (4000 m) 23F to 113F (-5C to +45C)
Short-term exception at sealevel with single fan failure 23F to 113F (-5C to +45)
Storage environment  -40F to 160F (-40C to 70C)
Operating altitude Up to 13,000 Feet (Up to 4000 Meters)
Storage altitude Up to 15,000 Feet (Up to 4573 Meters)
Operating relative humidity 10% to 95% noncondensing
Storage relative humidity 10% to 95% noncondensing
