Features
Content
WS-C3560CX-8XPD-S-NEW
Details
  • Switch
  • Managed
  • 8 x 10/100/1000 (PoE+) + 2 x combo 10 Gigabit SFP+
  • desktop
  • rack-mountable
  • DIN Rail Mountable
  • wall-mountable
  • PoE+ (240 W)
Category
Stock

Additional information

Brand

Cisco

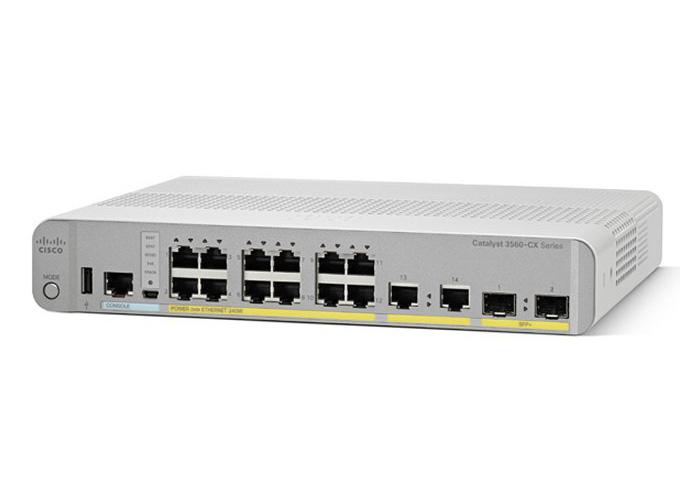

Cisco WS-C3560CX-8XPD-S Switch Overview



The Cisco Catalyst compact switches easily expand your Ethernet and Multigigabit Ethernet Cisco Catalyst switching infrastructure outside the wiring closet to enable more workspaces, extend wireless LANs, and connect PoE devices. These fanless, small form-factor switches are ideal for space-constrained deployments where multiple cable runs would be challenging. The Cisco Catalyst 3560CX Multigigabit Ethernet switches support wireless speeds and standards on existing cabling infrastructure.



Ethernet Ports 6 x 10/100/1000 Gigabit Ethernet plus 2 Multigigabit Ethernet 100/2500/5000/10000
PoE
Output Ports
8 PoE+
Available
PoE Power
240W
Uplinks 2 x 10G SGP+
Default Software IP Base (IP Services with RTU License)
Powering Option Internal power supply
Can Switch Be Powered with Uplinks? Yes
Forwarding Bandwidth 46 Gbps
Switching Bandwidth (full-duplex capacity) 92 Gbps
Flash memory 128 MB
Memory DRAM 512 MB
Max VLANs 1023
VLAN IDs 4000
Maximum transmission unit (MTU) Up to 9000 bytes
Jumbo frames 9198 bytes
Forwarding rate 64 Byte Packet Cisco Catalyst 3560-CX 68.4 mpps
Dimensions
(H x W x D)
4.44 x 26.9 x 26.4 cm , 1.75 x 10.6 x 10.4 in
Operating* temperature up to 5000 ft (1524 m) -5C to +45C**

+23F to +113F

Operating* temperature up to 10,000 ft (3048 m) -5C to +45C

+23F to +113F

Storage temperature up to 15,000 ft (4572 m) -25C to +70C

-13F to +158F

Operating altitude Up to 3048 m

Up to 10,000 ft

Storage altitude Up to 4000 m

Up to 15,000 ft

Operating relative humidity 5% to 95% noncondensing
Storage relative humidity 5% to 95% noncondensing
MTBF 528,480
