WS-C2960X-24TS-L-NEW
Details
  • 24 x 10/100/1000 Ports - Gigabit Ethernet Switch
  • 4 x 1G SFP Uplinks
  • FlexStack-Plus Stacking
  • LAN Base
  • Layer 2
  • Managed
Category
Stock

Additional information

Brand

Cisco

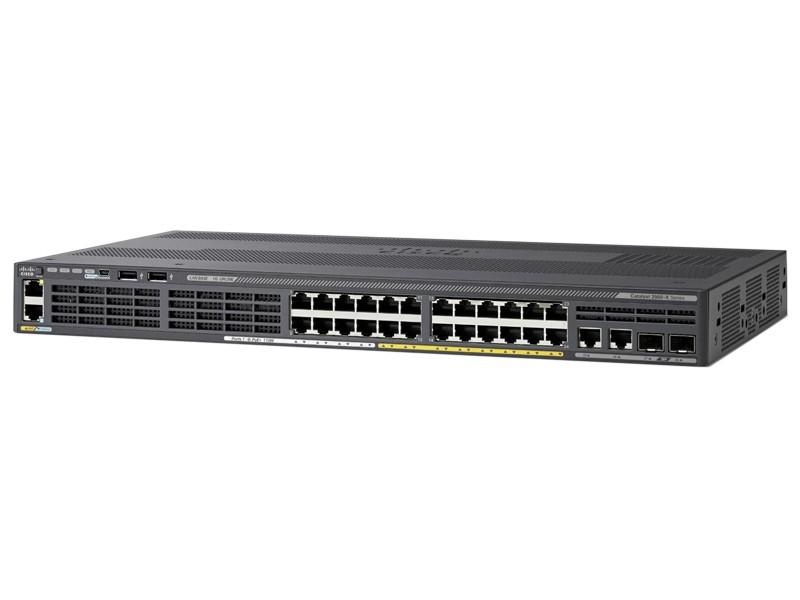

Use Cisco WS-C2960X-24TS-L Catalyst Switch for Energy Saving Operations

Cisco WS-C2960X-24TS-L Catalyst Switch features fixed-configuration, stackable Gigabit Ethernet switches. It provides enterprise-class access for branch and campus applications.

Key Benefits of Cisco WS-C2960X-24TS-L Catalyst Switch

Cisco WS-C2960X-24TS-L Catalyst Switch is designed for operational simplicity and total cost of ownership reduction. Use this switch to enable scalable, secure, and energy-efficient business operations.

Enclosure type Rack-mountable – 1U
Ports 24 x 10/100/1000 + 4 x 1G SFP
Network management Interface 10/100 Mbps Ethernet (RJ-45)
Available PoE Power None
Forwarding bandwidth(Gbps) 108Gbps
Maximum stacking number 8
Stack Bandwidth 80G
Forwarding Performance 71.4Mpps
Switching bandwidth 216Gbps
Maximum active VLANs 1023
MAC Address Table Size 16K (default)
CPU APM86392 600MHz dual core
RAM 512 MB
Flash Memory 128 MB
Status Indicators Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, and link speed
Console ports USB (Type-B), Ethernet (RJ-45)
Stacking cable Optional
Power Redundancy Option (PWR-RPS2300)
Voltage range (Auto) 110V-240V
Power Consumption Operational 0.039KVA
Width 17.5 Inches (44.5 cm)
Depth 14.5 Inches (36.8 cm)
Height 1.75 Inches (4.5 cm)
Package Weight 20.26 Pounds (9.19Kg)
Weight 8.9 Pounds (4.0Kg)
Rack Mounting Kit optional
MTBF in hours 622,350
Compliant Standards IEEE 802.1D Spanning Tree Protocol
IEEE 802.1p CoS Prioritization
IEEE 802.1Q VLAN
IEEE 802.1s
IEEE 802.1w
IEEE 802.1X
IEEE 802.1ab (LLDP)
IEEE 802.3ad
IEEE 802.3af and IEEE 802.3at
IEEE 802.3ah (100BASE-X single/multimode fiber only)
IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1p CoS Prioritization
IEEE 802.1Q VLAN
IEEE 802.1s
IEEE 802.1w
IEEE 802.1X
IEEE 802.1ab (LLDP)
IEEE 802.3ad
IEEE 802.3af and IEEE 802.3at
IEEE 802.3ah (100BASE-X single/multimode fiber only)
IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
System software IOS LAN BASE
license NERGY-MGT-100-K9, EW-DO-100-DE
features RPS Support
Jumbo Frames
VLANS
Voice Vlan
VTPv2
CDPv2
LLDP
802.3ad LACP
PVST/PVST+
802.1W/802.1S
Port Fast/Uplink Fast
port CoS Trust and Override
Scheduling
Priority Queuing
Configure CoS Priority Queues
Weighted Tail Drop
DSCP transparency
Network security SSH, SSL and SCP
RADIUS and TACACS+
SNMPv3 crypto
802.1x
802.1x Accounting / MIB
802.1x w/ port security
802.1x w/Voice VLAN
802.1x Guest VLAN
802.1x VLAN assignment
802.1x MAC-Auth Bypass
BPDU/Root Guard
Port Security
Private VALN Edge
Storm Control
Block unknown unicast and multicast
IGMP Snooping
IGMP Filter/Throttle
Management and Troubleshooting Auto-MDOX
TDR
UDLD
IP SLA Responder
layer 2 / IP Traceroute
SPAN
RSPAN
Express Setup
Device Manager
Cisco Network Assistant
Smartports + Advisor
Troubleshooting Advisor
Drag-and-drop Cisco IOS Upgrade
IP Address DHCP
Autoinstall with saved configuration
Configuration Replace
DHCP Auto Image Upgrade
DHCP Port Based Allocation
Error Disable MIB
Operating temperature up to 5000 ft (1500 m) 23F to 113F
Operating temperature up to 10,000 ft (3000 m) 23F to 104F
Short-term exception at sea level* 23F to 131F
Short-term exception up to 5000 feet (1500 m)* 23F to 122F
Short-term exception up to 10,000 feet (3000 m)* 23F to 113F
Short-term exception up to 13,000 feet (4000 m)* 23 to 104F
Storage temperature up to 15,000 feet (4573 m) -13 to 158F
Operating altitude Up to 10,000 feet
Storage altitude Up to 13,000 feet
Operating relative humidity 10% to 95% noncondensing
Storage relative humidity
10% to 95% noncondensing
