WS-C2960CX-8TC-L-NEW
Details
  • Switch
  • Layer 3
  • Standalone
  • 2x 1G SFP / 2x 1G Copper Uplinks
  • LAN Base
  • Managed
Category
Stock

Additional information

Brand

Cisco

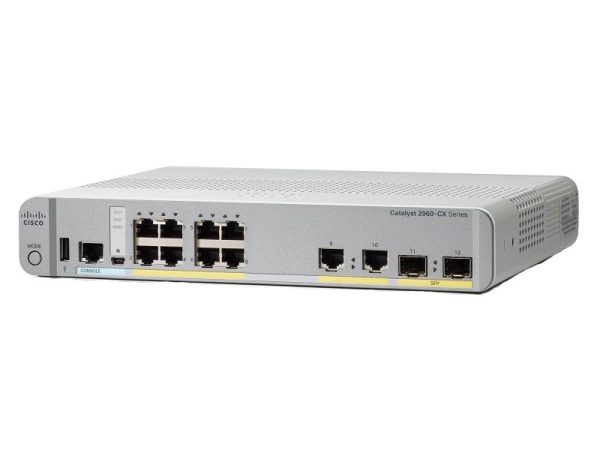

Use CISCO WS-C2960CX-8TC-L for Networking-constrained Work Environments

CISCO WS-C2960CX-8TC-L Switch offers perfect solutions for networking constrained work environments and features compact Ethernet switching system to deliver enhanced switching services and support for technologies such as wireless networking, IP communications, and IP video surveillance for growing SMBs.

Key Benefits of CISCO WS-C2960CX-8TC-L

CISCO WS-C2960CX-8TC-L Switches deliver excellent performance, high availability, and manageability for workplaces requiring the most connectivity.

Ethernet Ports 8 x 10/100/1000 Gigabit Ethernet
PoE
Output Ports
N/A
Available
PoE Power
N/A
Uplinks 2 x 1G copper plus
2 x 1G SFP
Default Software LAN Base
Forwarding Bandwidth 12 Gbps
Switching Bandwidth (full-duplex capacity) 24 Gbps
Flash memory 128 MB
Memory DRAM 512 MB
Max VLANs 255
VLAN IDs 4000
Maximum transmission unit (MTU) Up to 9000 bytes
Jumbo frames 9198 bytes
Forwarding rate 64 Byte Packet  17.9 mpps
Power connectors – Customers can provide power to a switch by using the internal power supply.

The connector is located at the back of the switch.

The internal power supply is an autoranging unit

– The internal power supply supports input voltages between 100 and 240VAC
– Use the supplied AC power cord to connect the AC power connector to an AC power outlet

Indicators Per-port status: Link integrity, disabled, activity, speed, full-duplex

System status: System, link status, link duplex, link speed

Dimensions
(H x W x D)
1.75 x 10.6 x 8.4 in (4.44 x 26.9 x 21.3 cm)
Weight 3.8 lb (1.72 Kg)
Package Weight 9.66 lb (4.38 Kg)
Operating* temperature up to 5000 ft (1524 m) -5C to +45C

(+23F to +113F)

Operating* temperature up to 10,000 ft (3048 m) -5C to +45C

(+23F to +113F)

Storage temperature up to 15,000 ft (4572 m) -25C to +70C

(-13F to +158F)

Operating altitude Up to 3048 m

(Up to 10,000 ft)

Storage altitude Up to 4000 m

(Up to 15,000 ft)

Operating relative humidity 5% to 95% noncondensing
Storage relative humidity 5% to 95% noncondensing
Mean time between failure (MTBF) 756,260
