SG550X-24P-K9-NEW
Details
  • Switch
  • L3
  • Managed
  • 24 x 10/100/1000 (PoE+) + 2 x combo 10GBase-T + 2 x SFP+
  • rack-mountable
  • PoE+ (195 W)
Category
Stock

Additional information

Brand

Cisco

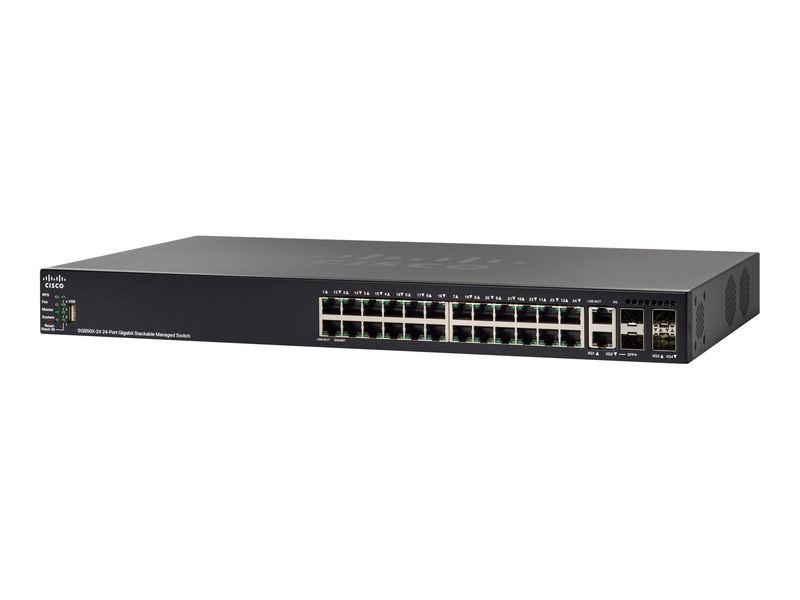

Install Cisco SG550X-24P-K9 Switch for High Reliability

Cisco SG550X-24P-K9 Switch is designed for a wide variety of office and usage scenario deployment. It offers highly reliable Gigabit connectivity for enterprises of all sizes. It includes 24 GbE ports, each with PoE support, and every unit supports physical stacking up to eight units.

Key Benefits of Cisco SG550X-24P-K9 Switch

Cisco SG550X-24P-K9 Switch offers robust onboard security systems and optional redundant power supplies and fans can reduce the chances of hardware failure. Its smart auto-configuration and power-saving features can adjust depending on attached devices, simplifying the administrators' workload.

Short Description Switch: L3 managed, 24 x 10/100/1000 + 2 x 10 GE combo + 2 x 10GE SFP+, rack-mountable, PoE
Device type Switch: 1G, 24 ports, L3 managed
Enclosure type Rack-mountable, 1RU
Ports 24 x 10/100/1000 + 2 x 10GE copper/SFP+ combo + 2 x 10GE SFP+
Power over Ethernet (PoE) PoE, PoE+ and 60W PoE (195W)
Switching capacity 128 Gbps
Forwarding performance (64-byte packets) 95.23 Mpps
MAC address table size 16,000 entries
Capacity (active VLANS) 4000
Routing protocol RIPv2, VRRP, PBR, static IPv4/IPv6 routing
Remote management protocol SNMPv1, RMON1, RMON2, RMON3, RMON9, Telnet, SNMPv3, SNMPv2c, HTTP, HTTPS, SSH, CLI
Features Stacking, flow control, Layer 2 switching, Layer 3 switching,

VLAN support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support,

Multiple Spanning Tree Protocol (MSTP) support, access control list (ACL) support, quality of service (QoS), reset button,

LACP support, Energy Efficient Ethernet, dynamic VLAN support (GVRP), advanced threat protection, IPv6 first-hop security,

static routing, dynamic routing, policy based routing, sFlow, RSPAN, ?60W PoE, hardware redundancy

Compliant IEEE standards 802.3, 802.3u, 802.3z, 802.1D, 802.1Q, 802.3ab, 802.3ae, 802.3an, 802.1p, 802.3x, 802.3ad (LACP), 802.1w, 802.1x, 802.1s, 802.3af, 802.3at, 802.3az
RAM 512 MB
Flash memory 256 MB
Status indicators System, Master, Fan, RPS, Stack ID, Link/Speed/PoE per port
Interfaces 24 x 10BASE-T/100Base-TX/1000BASE-T, RJ-45, PoE, 2 x 10GBASE-T/SFP+ combo, 2 x SFP+, 1 x console, RJ45, 1 x RPS port
Power supply Internal
Voltage required AC 120/230V (50/60 Hz)
Width 17.3 in. (440 mm)
Depth 13.8 in. (350 mm)
Height 1.7 in. (44 mm)
Weight 10.41 lb (4.72 kg)
Cables included 1 x console cable
Compliance standards UL 60950, FCC Part 15 A, CSA 22.2
Minimum operating temperature 32-F (0-C)
Maximum operating temperature 122-F (50-C)
Humidity range operating 10-90% (noncondensing)
Minimum storage temperature -4-F (-20-C)
Maximum storage temperature 158-F (70-C)
Humidity range storage 10-90% (noncondensing)
