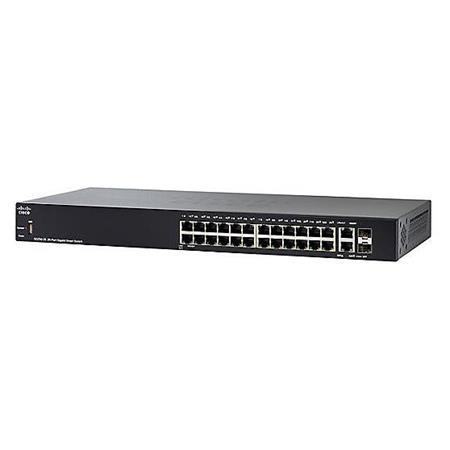

SG250-26HP-K9-NEW
Details
  • Switch
  • smart
  • 24 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP
  • rack-mountable
  • PoE+ (100 W)
Category
Stock

Additional information

Brand

Cisco

The Cisco 250 series is the next generation of affordable smart switches that combine powerful network performance and reliability with the essential network management features you need for a solid business network. These expandable Fast Ethernet or Gigabit Ethernet switches provide basic management, security, and quality-of-service (QoS) features beyond those of an unManaged or consumer-grade switch, at a lower cost than Managed switches. And with an easy-to-use web user interface, Auto Smartports, and flexible Power over Ethernet (PoE) Plus capability, you can deploy and configure a complete business network in minutes.
Device type Switch, 1 G, 26 ports
Enclosure type Rack-mountable, 1 RU
Ports 24 x 10/100/1000, 2 x Gigabit SFP/RJ-45
Power over Ethernet (PoE) PoE+ (24 ports, 100W)
Performance 52-Gbps switching capacity, 38.69-Mpps forwarding performance (64-byte packet size)
MAC address table size 8k entries
Capacity 256 active VLANs
Jumbo frame Yes
Remote management protocol SNMP, RMON, HTTP, HTTPS, TFTP, Telnet, SSH
Features Layer 2 switching, Layer 3 switching, DHCP support, BOOTP support, VLAN support, IGMP snooping,

Syslog support, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing,

Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control,

SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP),

Multiple Spanning Tree (MSTP), Trivial File Transfer Protocol (TFTP) support, access control list (ACL) support,

quality of service (QoS), jumbo frames support, MLD snooping, SNMP, RMON, SNTP, Cisco Discovery Protocol, Auto SmartPorts

Compliant standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q,

IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x,

IEEE 802.1s, IEEE 802.3af PoE, IEEE 802.3at PoE, IEEE 802.3az

RAM 512 MB
Flash memory 256 MB flash
Status indicators System, link/speed per port
Interfaces 24 x 10BASE-T/100BASE-TX/1000BASE-T, RJ-45 (PoE+), 2 x Gigabit SFP/RJ-45
Power device Power supply, internal
Voltage required AC 120/230V (50/60 Hz)
Width 17.3 in (440 mm)
Depth 10.12 in (257 mm)
Height 1.45 in (44 mm)
Weight 7.43 lb (3.37 kg)
Mounting kit Included
MTBF 333,792 hours
Compliant standards UL 60950, FCC Part 15 A, CSA 22.2
Minimum operating temperature 32F (0C)
Maximum operating temperature 122F (50C)
Humidity range operating 10-90% (noncondensing)
Minimum storage temperature -4F (-20C)
Maximum storage temperature 158F (70C)
Humidity range storage 10-90% (noncondensing)
