•  unmanaged
  • 24 x 10/100/1000 + 2 x combo Gigabit SFP
  • rack-mountable

Additional information

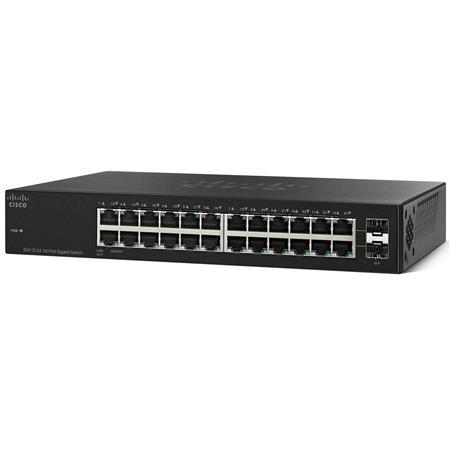

Create a reliable, high-speed network with the Cisco SG102-24 Gigabit Switch. It delivers fast Ethernet and Gigabit switching for seamless networking. This unmanaged switch with 128 MB RAM has two Combo Gigabit SFP connectors and 24 RJ-45 ports that are compatible with 10/100/1000 Ethernet protocols. Build in a rack mount design, it is easy to set up and use. With a host of advanced features, such as auto-negotiation, auto-uplink, cable diagnostics function, energy-efficient Ethernet, flow control and more, this rack-mount switch makes an ideal choice for any small or medium-sized business.
Device type Switch – 24 ports – unmanaged
Enclosure type Desktop, rack-mountable
Ports 22 x 10/100/1000 + 2 x combo SFP
Power over Ethernet (PoE)  N/A
Performance Switching capacity: 48 Gbps  Forwarding performance (64-byte packet size) : 35.7 Mpps
MAC address table size 8000 entries
Jumbo frame support Yes
Features Flow control, Layer 2 switching, auto-negotiation, auto-uplink (auto MDI/MDI-X), Weighted Round Robin (WRR) queuing, quality of service (QoS), cable diagnostics, loop detection, Energy Efficient Ethernet
Complaint standards  IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3az, IEEE 802.1p, IEEE 802.3x
Status indicators  Power, link/activity, cable diagnostics, loop detection
Interfaces 24 x 10Base-T/100Base-TX/1000Base-T – RJ-45  2 x SFP (mini-GBIC)
Power  Power device
Power devices  Power supply – internal
Voltage required  100-240V AC/50-60 Hz universal input
Width 11 in
Depth 6.7 in
Height  1.8 in
Weight 3.59 lbs
Fanless Yes
Complaint standards  UL 60950, FCC CFR47 Part 15, CSA 22.2
Localization Chinese (simplified), German, French, Italian, Spanish, Japanese
OS required N/A
Min operating temperature 32 F
Max operating temperature 104 F
Humidity range operating 10 – 90% (non-condensing)
Min storage temperature -4 F
Max storage temperature 158 F
Humidity range storage 10 – 90% (non-condensing)
