ISR4331-V/K9-NEW
Details
  • 100Mbps-300Mbps system throughput
  • 2 WAN/LAN ports
  • 2 SFP ports
  • multi-Core CPU
  • 1 service module slots
  • Security
  • Voice
  • WAAS
  • Intelligent WAN
  • OnePK
  • AVC
Category
Stock

Additional information

Brand

Cisco

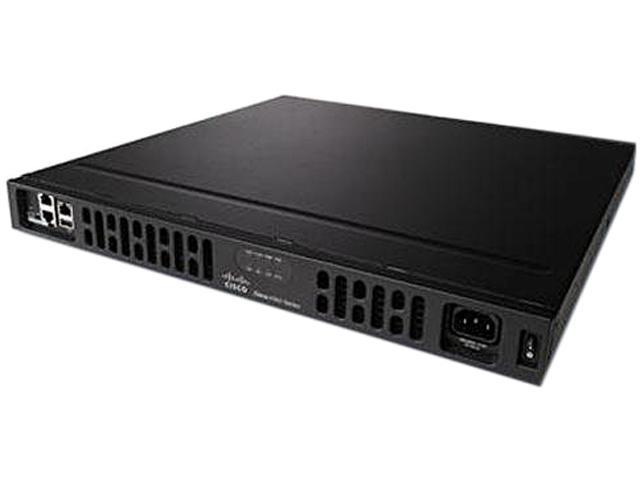

Cisco ISR4331-V/K9 Router Overview



Cisco Intergrated Service Router ISR4331-V/K9 Voice bundle is ideally designed for the small to mid-size enterprise branch environment, delivers advanced VOIP services and unprecedented levels of WAN intelligence. Cisco ISR4331-V/K9 combines 2 dual-mode Gigabit Ethernet ports and PVDM4 DSP for voice and video services, two network modules, one integrated service card slot and one service module slots which you can add a Gigabit Ethernet switch or maybe a Cisco UCS e-series single blade server module to run virtualized applications. Fully support for the OnePK software development kits means mutual awareness between both networks and applications. Application Visibility and control are natively available on the router, so you can measure user experience without external probes. Performance is the key to enabling advanced branch services or scaling across the enterprise. With IOS XE and dedicate control, data, and service CPUs, these platform is unmatched in the industry. ISR4331-V/K9 delivers 100Mbps-300Mbps performance on demand, with pay-as-you-grow performance, you can increase forwarding capacity when needed, so the platform performance growth with your business, you only pay for the performance you need. Secure communications are expected in ISR and you will have access to the most advanced encryption platform in the market, IPsec, SSL VPN and flex VPN with support for next-generation encryption standards as well. The Cisco ISR4331-V/K9 is the ultimate application delivery platform to mid-size branch offices. This is literally routing redefined.



Aggregate Throughput 100 Mbps to 300 Mbps
Total onboard WAN or LAN 10/100/1000 ports 3
RJ-45-based ports 2
SFP-based ports 2
Enhanced service-module (SM-X) slot 1
NIM (Network Interface Modules) slots 2
Onboard ISC slot 1
Memory 4 GB (default) / 16 GB (maximum)
Flash Memory 4 GB (default) / 16 GB (maximum)
Power-supply options Internal: AC and PoE
Rack height 1 RU
Dimensions (H x W x D) 44.45 x 438.15 x 438.15 mm
Package Weight

12.96 Kg

Aggregate Throughput 100 Mbps to 300 Mbps
Total onboard WAN or LAN 10/100/1000 ports 3
RJ-45-based ports 2
SFP-based ports 2
Enhanced service-module slots 1
Doublewide service-module slots 0
NIM slots 2
OIR (all I/O modules) Yes
Onboard ISC slot 1
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM

(Combined control/services/data planes)

4 GB
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) 16 GB
Default memory DDR3 ECC DRAM (data plane) NA
Maximum memory DDR3 ECC DRAM (data plane) NA
Default memory DDR3 ECC DRAM (control/services plane) NA
Maximum memory DDR3 ECC DRAM (control/services plane) NA
Default flash memory 4 GB
Maximum flash memory 16 GB
External USB 2.0 slots (type A) 1
USB console port -type B mini (up to 115.2 kbps) 1
Serial console port – RJ45 (up to 115.2 kbps) 1
Serial auxiliary port – RJ45
(up to 115.2 kbps)
1
Power-supply options Internal: AC and PoE
Redundant power supply N/A
AC input voltage 100 to 240 VAC auto-ranging
AC input frequency 47 to 63 Hz
AC input current range, AC power supply (maximum) 3 to 1.3A
AC input surge current 60 A peak and less than 5 Arms per half cycle
Typical power (no modules) (watts) 42
Maximum power with AC power supply (watts) 250
Maximum power with PoE power supply (platform only) (watts) 530
Maximum endpoint PoE power available from PoE power supply (watts) 250
