CP-7945G-NEW
Details
  • VoIP phone
  • SCCP
  • SIP
  • 2-line operation
  • Power Adapter Sold Separately
Category
Stock

Additional information

Brand

Cisco

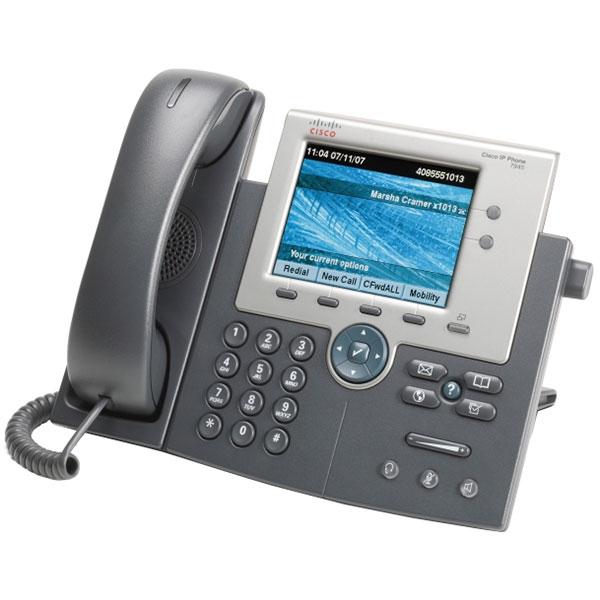

The Cisco Unified IP Phone 7945G demonstrates the latest advances in VoIP telephony, including wideband audio support, backlit color display, and an integrated Gigabit Ethernet port. It addresses the needs of transaction-type workers with significant phone traffic and the needs of those working with bandwidth-intensive applications on co-located PCs. This IP phone includes a large, backlit, easy-to-read color display for easy access to communication information, timesaving applications, and features such as date and time, calling party name, calling party number, digits dialed, and presence information. It also accommodates Extensible Markup Language (XML) applications that take advantage of the display. The phone provides direct access to two telephone lines (or combination of lines, speed dials, and direct access to telephony features), four interactive soft keys that guide you through call features and functions, and an intuitive four-way (plus Select key) navigation cluster. A hands-free speakerphone and handset designed for high-fidelity wideband audio are standard, as is a built-in headset connection.
Dimensions (H x W x D) 8.2 x 10.5 x 6 in. (20.32 x 26.67 x 15.24 cm)
Weight 3.5 lb (1.6 kg)
Phone-Casing Composition Acrylonitrile butadiene styrene (ABS) plastic in textured dark gray color with silver bezel
Power Supports IEEE 802.3af PoE (Class 3). 48VDC is required; it can be supplied locally at the desktop using an optional AC-to-DC power supply (part number CP-PWR-CUBE-3=) or power injector (CP-PWR-INJ=). Local power options require a corresponding AC country cord.
Phone Software Requirements Supported in 8.3(2) and greater
Call Control Compatibility Supported in Cisco Unified Communications Manager Versions 4.1(3)sr5b, 4.2(3)sr2b, 4.3(1), 5.1.1(b), 5.1(2), 6.0(1) and greater

Supported in Cisco Unified Communications Express and SRST Version 4.1

Signaling Protocols Skinny Client Control Protocol (SCCP) and Session Initiation Protocol (SIP) with Cisco call control
