Features
Content
C9400-LC-48U-NEW
Details
  • Switch
  • 48 x 10/100/1000
  • Plug-in module
  • UPOE (60 W)
Category
Stock

Additional information

Brand

Cisco

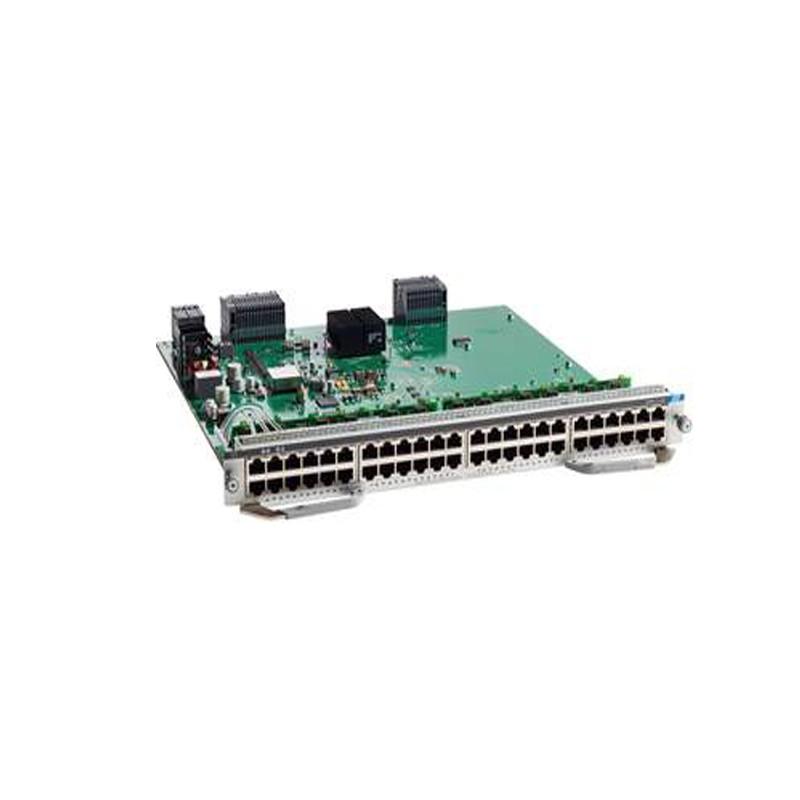

Enterprise-class Cisco C9400-LC-48U Switch Line Card

Built for security, IoT and Cloud, Cisco C9400-LC-48U Switch Line Card is Cisco's lead modular enterprise switching product. It is ideal to form foundational building block for SD-Access - Cisco's leading enterprise architecture.

Key Benefits of Cisco C9400-LC-48U Switch Line Card

Cisco C9400-LC-48U Switch Line Card switching platform is a perfect choice for creating unparalleled investment protection with a chassis architecture that is capable of supporting up to 9Tbps of system bandwidth and unmatched power delivery for high-density IEEE 802.3BT (60W PoE). Choose this product for table stack redundancy.





Standards   Gigabit Ethernet: IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab, IEEE 803.3at, IEEE 802.3af, IEEE 802.3az
EtherChannel Technology   Gigabit EtherChannel: All 1000 Mbps ports

  10 Gigabit EtherChannel: All 10Gbps ports

  IEEE 802.3ad (Link Aggregation Control Protocol): All 1000 Mbps ports

  Port Aggregation Protocol (PagP): Yes

  Number of ports per tuple: 8

  EtherChannel and IEEE 802.3ad technology across line cards: Yes

Physical Dimensions   Occupies one slot in the Cisco Catalyst 9400 Series platform

  Dimensions (H x W x D): 1.6 x 14.92 x 14.57 in. (4.06 x 37.90 x 37.00 cm)

Environmental Conditions   Operating temperature:

  Normal Operating Temperature and Altitudes:

   27 to 109F (-5 to +45C), up to 6,000 feet (1800 m)

   27 to 104F (-5 to +40C), up to 10,000 feet (3000 m)

   Minimum ambient temperature for a cold startup is 0C

  Short-Term Exceptional Conditions:

   27 to 119F (-5 to +55C), up to 6,000 feet (1800 m)

   27 to 114F (-5 to +50C), up to 10,000 feet (3000 m)

   Not more than following in a one-year period: 96 consecutive hours, or 360 hours total, or 15 occurrences

  Storage temperature: -40 to 158 F (-40 to 70C)

  Relative humidity: 10 to 95%, noncondensing

  Operating altitude: -60 to 3000m

Safety Conditions Fiber optic lasers: Class 1 laser products
Safety Certifications   UL 60950-1

  CAN/CSA-C222.2 No. 60950-1

  EN 60950-1

  IEC 60950-1

  AS/NZS 60950.1

  IEEE 802.3

Electromagnetic Emissions Certifications   47 CFR Part 15

  CISPR22 Class A

  EN 300 386 V1.6.1

  EN 55022 Class A

  EN 55032 Class A

  CISPR 32 Class A

  EN61000-3-2

  EN61000-3-3

  ICES-003 Class A

  TCVN 7189 Class A

  V-3 Class A

  CISPR24

  EN 300 386

  EN55024

  TCVN 7317

ROHS Compliance ROHS5
