C9200L-24P-4G-E-NEW
Details
  • Network Essentials
  • switch
  • L3
  • 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
  • rack-mountable
  • PoE+ (740 W)
Category
Stock

Additional information

Brand

Cisco

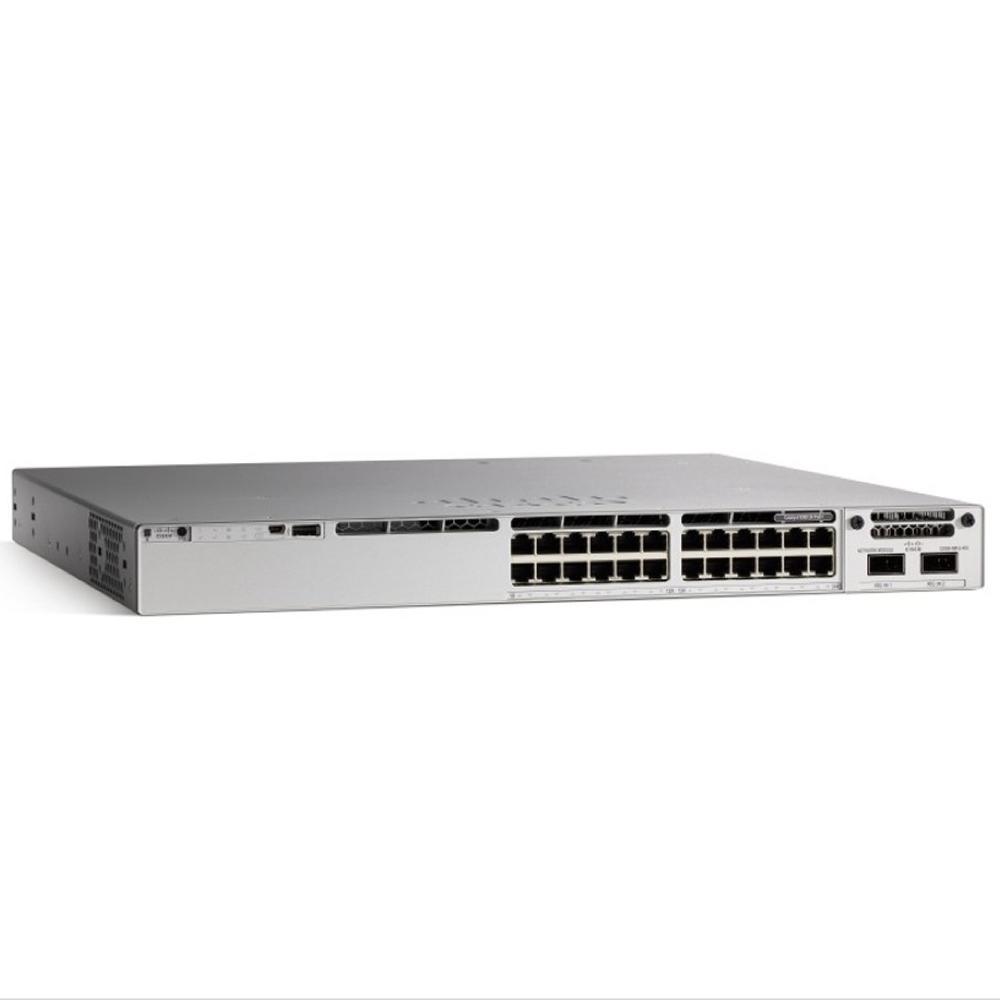

Use Cisco C9200L-24P-4G-E Switch for Intent-based Networking

Cisco C9200L-24P-4G-E Switch is a powerful intent-based networking solution through efficient switching system for a broader set of deployments. Catalyst 9200 Series switches are designed for simplifying, securing process and serving around-the-clock. Get this solution at reduced cost while leveraging intelligence, automation, and unparalleled human expertise.

Key Benefits of Cisco C9200L-24P-4G-E Switch

Cisco C9200L-24P-4G-E Switch is intended to provide full control security features to protect the integrity of the hardware and software and the entire data flowing through switch. The resiliency of this switch for keeping the business up and running seamlessly is admirable and the open APIs of Cisco IOS XE and programmability of the UADP ASIC technology of the Catalyst 9200 Series switches offer what users would require for investment protection now on future innovations. Catalyst 9200 Series switches stand out among others as a solution with differentiated resiliency and progressive architecture for cost-effective branch-office access. Catalyst 9200 Series switches come with full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, modular uplinks, Layer 3 feature support, and cold patching.



Downlinks total 10/100/1000 or PoE+ copper ports 24 ports full PoE+
Uplink configuration 4x 1G fixed uplinks
Default primary AC power supply PWR-C5-600WAC
Fans Fixed redundant
Software Network Essentials
Stacking bandwidth 80 Gbps
DRAM 2 GB
Flash 4 GB
Switching capacity 56 Gbps
Forwarding rate 83.33 Mpps
Chassis Dimensions 1.73 x 17.5 x 11.3 in
4.4 x 44.5 x 28.8 cm
Weight 4.35 Kg


Downlinks total 10/100/1000 or PoE+ copper ports 24 ports full PoE+
Uplink configuration 4x 1G fixed uplinks
Default primary AC power supply PWR-C5-600WAC
Fans Fixed redundant
Software Network Essentials
Chassis Dimensions 1.73 x 17.5 x 11.3 in
4.4 x 44.5 x 28.8 cm
Weight 4.35 Kg
Virtual Networks 1
Stacking bandwidth 80 Gbps
Total number of MAC addresses 16,000
Total number of IPv4 routes (ARP plus learned routes) 11,000 (8,000 direct routes and 3,000 indirect routes)
IPv4 routing entries 3,000
IPv6 routing entries 1,500
Multicast routing scale 1,000
QoS scale entries 1,000
ACL scale entries 1,500
Packet buffer per SKU 6 MB buffers for 24- or 48-port Gigabit Ethernet models
Flexible NetFlow (FNF) entries 16,000 flows on 24- and 48-port Gigabit Ethernet models
DRAM 2 GB
Flash 4 GB
VLAN IDs 1024
Total Switched Virtual Interfaces (SVIs) 512
Jumbo frames 9198 bytes
Wireless bandwidth per switch N/A
Switching capacity 56 Gbps
Forwarding rate 83.33 Mpps
Meantime between failures (hours) 392,210
