• Switch
  • L3
  • 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
  • rack-mountable
  • PoE+ (740 W)

Additional information

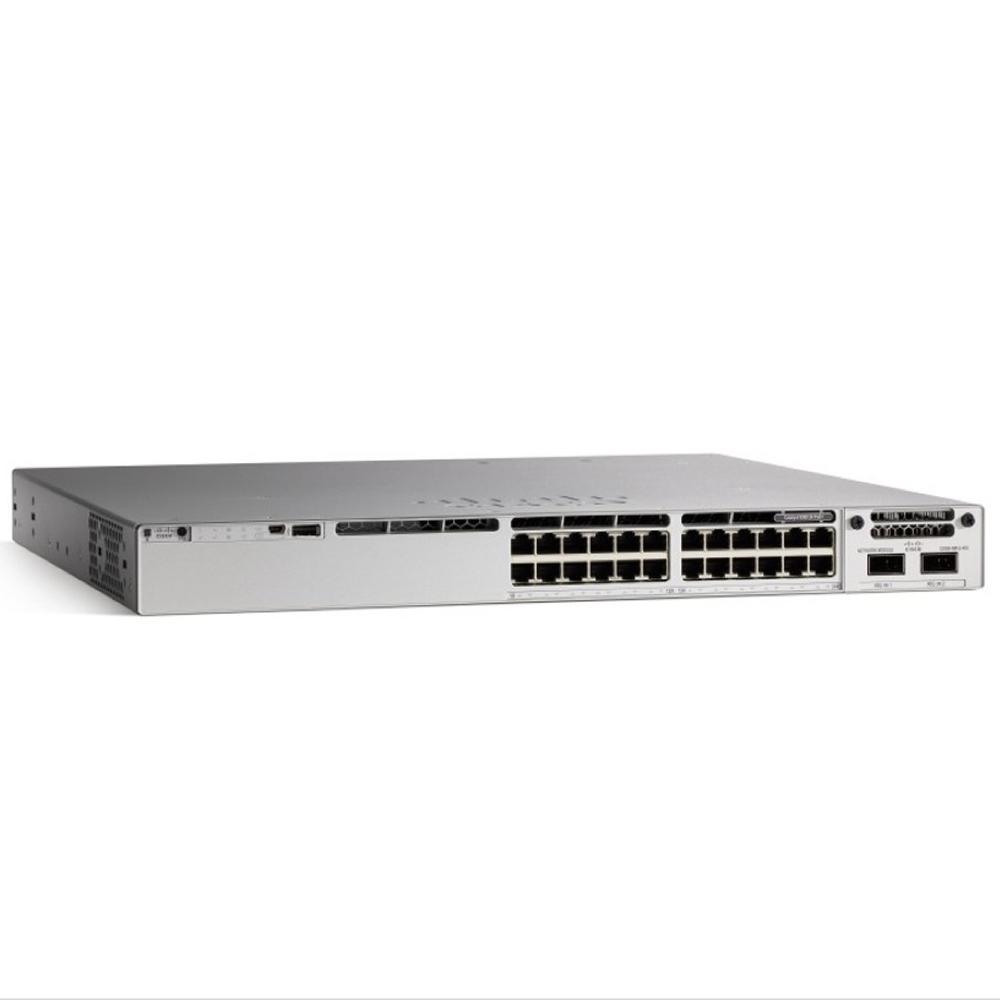

Use Cisco C9200L-24P-4G-A Switch for Intent-based Networking Solution

Cisco C9200L-24P-4G-A Switch is a perfect choice for extending the power of intent-based networking and Catalyst 9000 hardware and software innovation to a wider set of deployments. This switch system offers simplicity without compromise for security and IT simplicity.

Cisco C9200L-24P-4G-A Switch is considered as foundational building blocks for the Cisco Digital Network Architecture. It can help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation, and human expertise.

Key Benefits of Cisco C9200L-24P-4G-A Switch

Cisco C9200L-24P-4G-A Switch offers an intent-based networking journey. It provides resiliency to keep business up and running seamlessly. It gives you what you need now with investment protection on future innovations, thanks to the combined capability of open APIs of Cisco IOS XE and the programmability of the UADP ASIC technology. It gives full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, modular uplinks, Layer 3 feature support, and cold patching.


Downlinks total 10/100/1000 or PoE+ copper ports 24 ports full PoE+
Uplink configuration 4x 1G fixed uplinks
Default primary AC power supply PWR-C5-600WAC
Fans Fixed redundant
Software Network Advantage
Stacking bandwidth 80 Gbps
Flash 4 GB
Switching capacity 56 Gbps
Forwarding rate 83.33 Mpps
Chassis Dimensions 1.73 x 17.5 x 11.3 in
4.4 x 44.5 x 28.8 cm
Weight 4.35 Kg
Virtual Networks  1
Total number of MAC addresses 16,000
Total number of IPv4 routes (ARP plus learned routes) 11,000 (8,000 direct routes and 3,000 indirect routes)
IPv4 routing entries 3,000
IPv6 routing entries 1,500
Multicast routing scale 1,000
QoS scale entries 1,000
ACL scale entries 1,500
Packet buffer per SKU 6 MB buffers for 24- or 48-port Gigabit Ethernet models
Flexible NetFlow (FNF) entries 16,000 flows on 24- and 48-port Gigabit Ethernet models
Flash 4 GB
VLAN IDs 1024
Total Switched Virtual Interfaces (SVIs) 512
Jumbo frames 9198 bytes
Wireless bandwidth per switch N/A
Switching capacity 56 Gbps
Forwarding rate 83.33 Mpps
Meantime between failures (hours) 392,210
