C1111-8P-NEW
Details
  • Router
  • 8-port switch
  • GigE
  • WAN ports: 2
Category
Stock

Additional information

Brand

Cisco

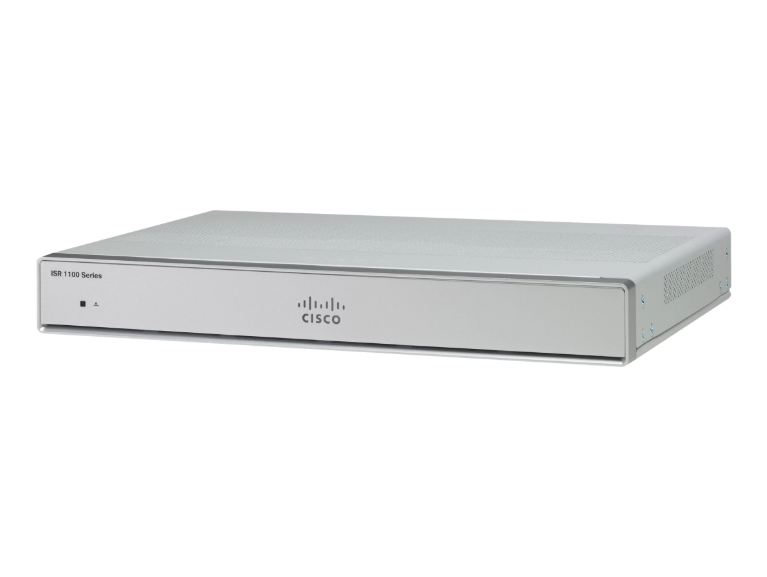

Cisco C1111-8P Router

Cisco C1111-8P Router is easy to deploy and easy to manage, with cutting-edge, scalable, multi-core separate data and control panel capabilities.

Key Benefits of Cisco C1111-8P Router

Cisco C1111-8P Router is best-suited for deployment as Customer Premises Equipment (CPE) in enterprise branch offices. This CPE is also deployable in service provider managed environments as well as smaller form factor and M2M use cases.



GE 1
GE/SFP combo 1
ADSL2/VDSL2+ N/A

LTE Advanced (CAT6)
N/A
802.11ac N/A
GE 8
PoE 4
PoE+ 2
Integrated USB 3.0 AUX/console Yes
Dimensions (H x W x D) 1.75 x 12.7 x 9.03 in.
(42 x 323 x 230mm) (includes rubber feet)
Weight with AC PS (w/o modules) 5.5 Lbs. (2.5 kg) maximum
Description ISR 1100 8 Ports Dual GE WAN Ethernet Router
Dimensions (H x W x D) Non-LTE models:
H x W X D = 1.75 x 12.7 x 9.03 in. (42 x 323 x 230mm) (includes rubber feet)
Weight with AC PS (w/o modules) 5.5 Lbs. (2.5 kg) maximum
Input voltage Universal 100 to 240 VAC
Frequency 50-60 Hz
Input current PoE not enabled: 0.82A maximum

PoE enabled: 1.55A Maximum

Surge current 90 A peak and less than 8 Arms per half cycle
Micro USB Port One RJ-45: Separate console port
USB port USB 3.0 Type A host port
USB devices supported:
USB flash memory
Console port One USB 5-pin micro Type B: Console management connectivity
10/100/1000 Gigabit Ethernet Two GE ports allocated among RJ45 and SFP as:

One combo port with 10/100/1000RJ-45 Ethernet port or SFP Ethernet port (labeled GE0/0/0)

One dedicated 10/100/1000RJ-45 Ethernet port (labeled GE0/0/1)

Wireless VLANs 32 (encrypted and non-encrypted VLANs)
Wireless specifications 2×2 .11ac Wave 2
Default and maximum DRAM 4GB
Default and maximum flash 4GB
Inline PoE 4 ports for -8P PIDs, 2 ports for -4P PIDs

802.3af-compliant PoE or 802.3at-compliant PoE+

Acoustic for Cisco 1100 Series ISRs Emission
47 CFR Part 15
CISPR 32 Edition 2

EN 300 386 V1.6.1

EN 55032:2012/ AC:2013

EN 55032:2015

EN61000-3-2 2014

EN61000-3-3: 2013

ICES-003 ISSUE 6:2016

KN 32: 2015

V-2/2015.04

V-3/2015.04

TCVN 7189: 2009

CNS13438: 2006

IEC 60950-1

EN 60950-1

UL 60950-1

CSA C22.2 No. 60950-1

Immunity

CISPR24: 2010 + A1: 2015

EN 300 386 V1.6.1

EN55024: 2010 + A1: 2015

KN35: 2015

TCVN 7317: 2003

Operating humidity 5 to 85% relative humidity
Operating temperature 32 to 104 F (0 to 40 C) Sea Level;

32 to 77 F (0 C to 25 C) at 10,000 ft

1.5 C derating per 1000 ft

Altitude  0-10,000 ft (0-3050 m)
Nonoperating temperature -40 to 158 F (-40 to 70 C)
Nonoperating humidity 5 to 95% relative humidity (noncondensing)
Nonoperating altitude 0 to 15,000 ft (0 to 4570m)
