AIR-CT3504-K9-NEW
Details
  • Network management device
  • 4 ports
  • PPP
  • 10 GigE
  • 802.11ac Wave 2
  • 802.11ac Wave 1
  • Wi-Fi
Category
Stock

Additional information

Brand

Cisco

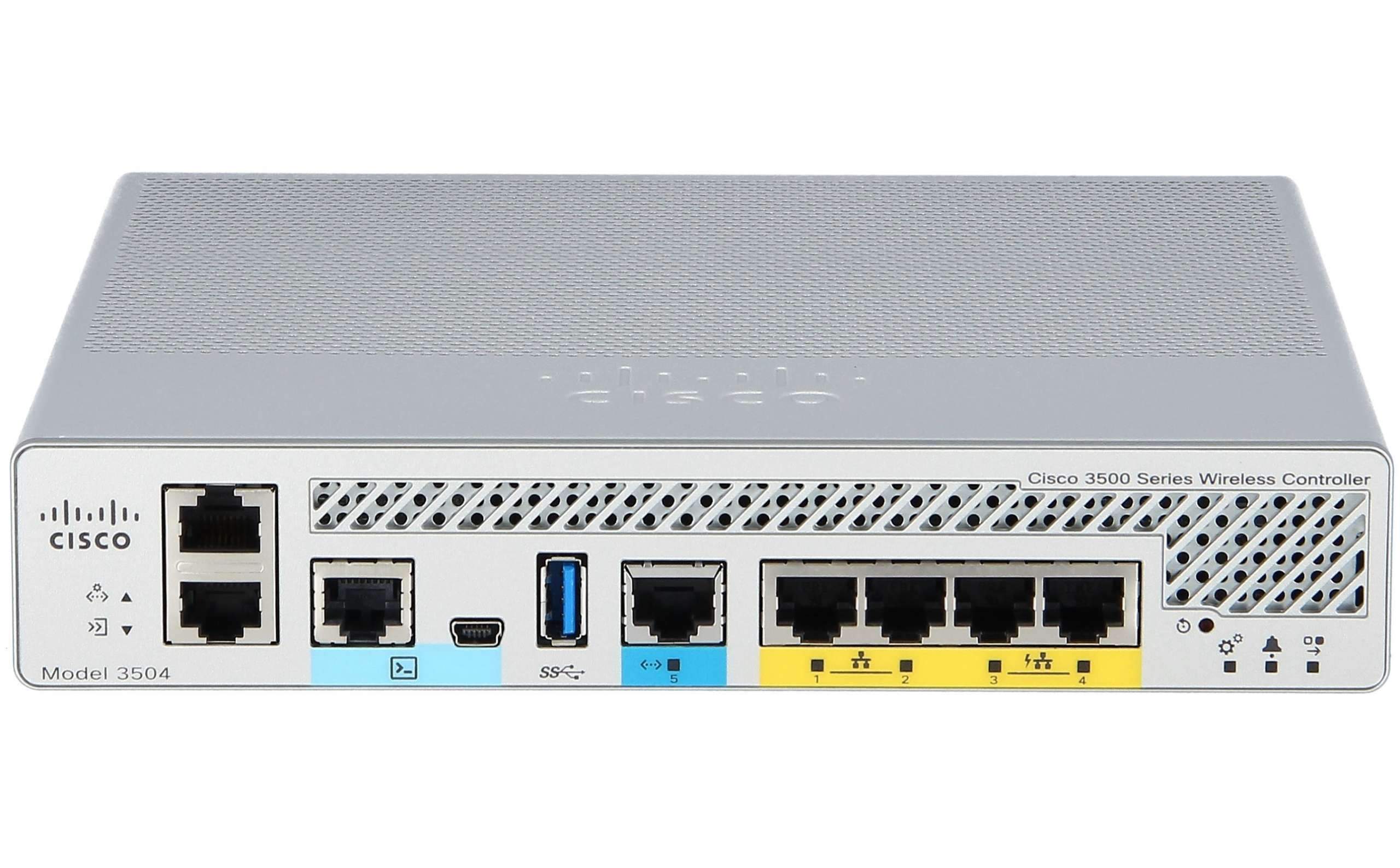

Cisco Air-Ct3504-K9 Wireless Controller for Unified Wireless Network

Cisco Air-Ct3504-K9 Wireless Controller is built to deliver solutions for centralized control, management, and troubleshooting for all business environments. It supports multiple deployment modes in the same controller, ranging from centralized mode for campus environments, Cisco FlexConnect mode for lean branches managed over the WAN. Cisco Air-Ct3504-K9 Wireless Controller provides support for a mesh (bridge) mode for deployments where users won't get full Ethernet cabling solution.

Key Benefits of Cisco Air-Ct3504-K9 Wireless Controller

Cisco Air-Ct3504-K9 Wireless Controller is a component of the Cisco Unified Wireless Network.  It provides real-time communications between Cisco Aironet Access Points, Cisco Prime Infrastructure, and the Cisco Mobility Services Engine. It supports interoperable needs with the Cisco 5520 and 8540 Wireless Controllers.



Chassis Height One rack-unit (1RU)
Throughput 4 Gbps
Number of APs supported 150
Number of clients supported 3000
Processor Cavium Network Processor-CN7240-AAP 8-core, 1.5 GHz
Memory Options Control/Data Plane Memory-8GB DDR4

Boot Flash-8MB SPI NOR Serial Boot

Bulk Flash-32GB eMMC
Redundancy, Service Ports 2x 1G Cu
Data Ports 1x 5G/mGig Cu, 4x 1G Cu (2 ports 802.3at PSE)



Chassis Height One rack-unit (1RU)
Throughput 4 Gbps
Number of APs supported 150
Number of clients supported 3000
Processor Cavium Network Processor-CN7240-AAP 8-core, 1.5 GHz
Memory Options Control/Data Plane Memory-8GB DDR4

Boot Flash-8MB SPI NOR Serial Boot

Bulk Flash-32GB eMMC

Redundancy, Service Ports 2x 1G Cu
Data Ports 1x 5G/mGig Cu, 4x 1G Cu (2 ports 802.3at PSE)
Storage Temperature -4 F to 158 F (-20 C to 70 C)
Operating Temperature 32 F to 104 F (0 C to 40 C)
Storage Humidity 0% to 95% RH non-condensing
Operating Humidity 5% to 95% RH non-condensing
Power Adapter 54VDC/1.05A, 12VDC/3.75A
Wireless IEEE 802.11a, 802.11b, 802.11g, 802.11d, WMM/802.11e, 802.11h, 802.11n, 802.11k, 802.11r, 802.11u, 802.11w, 802.11ac Wave 1 and Wave 2
Wired, switching, and routing IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX specification, 1000BASE-T. 1000BASE-SX, 1000-BASE-LH, IEEE 802.1Q VLAN tagging, IEEE 802.1AX Link Aggregation
Data Request For Comments (RFC)  RFC 768 UDP

 RFC 791 IP

 RFC 2460 IPv6

 RFC 792 Internet Control Message Protocol (ICMP)

 RFC 793 TCP

 RFC 826 Address Resolution Protocol (ARP)

 RFC 1122 Requirements for Internet Hosts

 RFC 1519 Classless Interdomain Routing (CIDR)

 RFC 1542 BOOTP

 RFC 2131 Dynamic Host Configuration Protocol (DHCP)

 RFC 5415 CAPWAP Protocol

 RFC 5416 CAPWAP Binding for 802.11

Security standards  Wi-Fi Protected Access (WPA)

 IEEE 802.11i (WPA2, RSN)

 RFC 1321 MD5 Message-Digest Algorithm

 RFC 1851 Encapsulating Security Payload (ESP) Triple Data Encryption Standard (3DES) Transform

 RFC 2104 HMAC: Keyed Hashing for Message Authentication

 RFC 2246 Transport Layer Security (TLS) Protocol Version 1.0

 RFC 2401 Security Architecture for the Internet Protocol

 RFC 2403 HMAC-MD5-96 within ESP and Authentication Header (AH)

 RFC 2404 HMAC-SHA-1-96 within ESP and AH

 RFC 2405 ESP DES-CBC Cipher Algorithm with Explicit IV

 RFC 2407 Interpretation for Internet Security Association and Key Management Protocol (ISAKMP)

 RFC 2408 ISAKMP

 RFC 2409 Internet Key Exchange (IKE)

 RFC 2451 ESP Cipher Block Chaining (CBC)-Mode Cipher Algorithms

 RFC 3280 Internet X.509 Public Key Infrastructure (PKI) Certificate and Certificate Revocation List (CRL) Profile

 RFC 4347 Datagram Transport Layer Security

 RFC 5426 TLS Protocol Version 1.2

Encryption Wired Equivalent Privacy (WEP) and Temporal Key Integrity Protocol-Message Integrity Check
(TKIP-MIC):

 RC4 40, 104 and 128 bits (both static and shared keys)

 Advanced Encryption Standard (AES): CBC, Counter with CBC-MAC (CCM), Counter with CBC Message Authentication Code Protocol (CCMP)

 Data Encryption Standard (DES): DES-CBC, 3DES

 Secure Sockets Layer (SSL) and TLS: RC4 128-bit and RSA 1024- and 2048-bit

 DTLS: AES-CBC

 IPsec: DES-CBC, 3DES, AES-CBC

 802.1AE MACsec encryption

Authentication, Authorization, and Accounting (AAA)  IEEE 802.1X

 RFC 2548 Microsoft Vendor-Specific RADIUS Attributes

 RFC 2716 Point-to-Point Protocol (PPP) Extensible Authentication Protocol (EAP)-TLS

 RFC 2865 RADIUS Authentication

 RFC 2866 RADIUS Accounting

 RFC 2867 RADIUS Tunnel Accounting

 RFC 2869 RADIUS Extensions

 RFC 3576 Dynamic Authorization Extensions to RADIUS

 RFC 5176 Dynamic Authorization Extensions to RADIUS

 RFC 3579 RADIUS Support for EAP

 RFC 3580 IEEE 802.1X RADIUS Guidelines

 RFC 3748 EAP

 Web-based authentication

 TACACS support for management users

Management  Simple Network Management Protocol (SNMP) v1, v2c, v3

 RFC 854 Telnet

 RFC 1155 Management Information for TCP/IP-Based Internets

 RFC 1156 MIB

 RFC 1157 SNMP

 RFC 1213 SNMP MIB II

 RFC 1350 Trivial File Transfer Protocol (TFTP)

 RFC 1643 Ethernet MIB

 RFC 2030 Simple Network Time Protocol (SNTP)

 RFC 2616 HTTP

 RFC 2665 Ethernet-Like Interface Types MIB

 RFC 2674 Definitions of Managed Objects for Bridges with Traffic Classes, Multicast Filtering, and Virtual Extensions

 RFC 2819 Remote Monitoring RMON MIB

 RFC 2863 Interfaces Group MIB

 RFC 3164 Syslog

 RFC 3414 User-Based Security Model (USM) for SNMPv3

 RFC 3418 MIB for SNMP

 RFC 3636 Definitions of Managed Objects for IEEE 802.3 MAUs

 Cisco private MIBs

Management interfaces  Web-based: HTTP/HTTPS

 Command-line interface: Telnet, Secure Shell (SSH) Protocol, serial port

 Cisco Prime Infrastructure

Interfaces and indicators  1x Multigigabit Ethernet interface (up to 5 Gigabit Ethernet) + 4x 1 Gigabit Ethernet interfaces (RJ-45)

 1x service port: 1 Gigabit Ethernet port (RJ-45)

 1x redundancy port: 1 Gigabit Ethernet port (RJ-45)

 1x console port: Serial port (RJ-45)

 1x console port: Serial port (mini-B USB)

 1x USB 3.0 port

 LED indicators: Network link, diagnostics

Physical and environmental Dimensions: 1.73 x 9.5 x 8.5 in. (43.94 x 214.3 x 215.9 mm)

Weight: 4.4lbs

Temperature:

Operating: 32 to 104 F (0 to 40C)

Storage: -4 to 158 F (-20 to 70C)

Humidity:

Operating Humidity: 5% to 95% RH non-condensing

Storage Humidity: 0% to 95% RH non-condensing

Power adapter: Input power: 100 to 240 VAC; 50/60 Hz

Heat dissipation (without PoE): 47W, 160BTU/hr

Heat dissipation (with PoE): 98W, 335BTU/hr

Regulatory compliance CE Markings per directives 2004/108/EC and 2006/95/EC Safety:

 UL 60950-1 Second Edition

 CAN/CSA-C22.2 No. 60950-1 Second Edition

 EN 60950-1 Second Edition

 IEC 60950-1 Second Edition

 AS/NZS 60950-1

 GB4943 2011 EMC – Emissions:

 47CFR Part 15 (CFR 47) Class B

 AS/NZS CISPR22 Class B

 EN 55032 Class B

 ICES003 Class A VCCI Class B

 EN 61000-3-2 EN 61000-3-3 KN22 Class B

 CNS13438 Class B EMC – Immunity:

 EN 55024

 CISPR24

 EN 300386

 KN24
