AIR-AP1815W-B-K9-NEW
Details
  • Wireless Access Point
  • Bluetooth 4.1 LE
  • 802.11ac Wave 2
  • Bluetooth 4.1 LE
  • 802.11a/b/g/n/ac Wave 2
  • Dual Band
  • in wall
Category
Stock

Additional information

Brand

Cisco

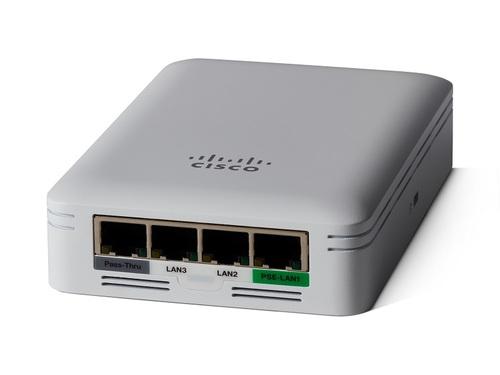

The Cisco Aironet 1815w Access Point offers a compact, wall plate mountable Access Point, ideal for hospitality, cruise ships, residential halls, or other multiple-dwelling-unit deployments. Packing 802.11ac Wave 2 wireless standards support and Gigabit Ethernet wired connectivity into a sleek device, the 1815w is built to take full advantage of existing cabling infrastructure while blending into the visual footprint. This combination provides high performance while reducing total cost of ownership.



Cisco AIR-AP1815W-B-K9 Access Point Overview



Feature Benefit
MU-MIMO Multiuser (MU) multiple-input multiple-output (MU-MIMO) allows simultaneous data transmission to multiple 802.11ac Wave, 2-capable clients, to improve the client experience. Prior to MU-MIMO, 802.11n and 802.11ac Wave 1 access points could transmit data to only one client at a time. This was typically referred to as single-user MIMO (SU-MIMO).
Gigabit Ethernet ports Three local Gigabit Ethernet ports are available to securely connect wired devices to the network. Traffic from wired devices can be tunneled back to a wireless LAN controller (for compatible controllers) or be locally switched by the access point. One of these Ethernet ports can also provide Power over Ethernet (PoE) out to power a device such as an IP phone or a security camera.
Cisco Mobility Express solution Flexible deployment through the Cisco Mobility Express Solution is ideal for small to medium-sized deployments that require 50 or fewer access points. Easy setup allows the 1815w to be deployed on networks without a physical controller.
Authentication and security    Advanced Encryption Standard (AES) for Wi-Fi Protected Access 2 (WPA2)

   802.1X, RADIUS authentication, authorization and accounting (AAA)

   802.11r

   802.11i

Software    Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.4 or later

   Cisco Mobility Express

Supported WLAN COntrollers    Cisco 2500 Series Wireless Controllers, Cisco 3500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst  6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex  7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco 9800 series Wireless Controllers,

   Cisco Mobility Express

Maximum clients    Maximum number of associated wireless clients: 200 per Wi-Fi radio, in total 400 clients per access point
802.11ac    2×2 single-user/multiuser MIMO with two spatial streams

   Maximal ratio combining (MRC)

   20-, 40-, and 80-MHz channels

   PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz)

   Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx)

   802.11 Dynamic Frequency Selection (DFS)

   Cyclic shift diversity (CSD) support

Ethernet ports    Authentication with 802.1X or MAC filtered

   Dynamic VLAN or per port

   Traffic locally switched or tunneled back to wireless LAN controller

Bluetooth (future Availability)    Integrated Bluetooth 4.1 (including BLE) radio

   Maximum transmit power: 4 dBm

   Antenna gain: 2 dBi

Maximum number of non-overlapping channels A (A regulatory domain):

   2.412 to 2.462 GHz; 11 channels

   5.180 to 5.320 GHz; 8 channels

   5.500 to 5.700 GHz; 8 channels

(excludes 5.600 to 5.640 GHz)

   5.745 to 5.825 GHz; 5 channels

B (B regulatory domain):

   2.412 to 2.462 GHz; 11 channels

   5.180 to 5.320 GHz; 8 channels

   5.500 to 5.720 GHz; 12 channels

   5.745 to 5.825 GHz; 5 channels

C (C regulatory domain):

   2.412 to 2.472 GHz; 13 channels

   5.745 to 5.825 GHz; 5 channels

D (D regulatory domain):

   2.412 to 2.462 GHz; 11 channels

   5.180 to 5.320 GHz; 8 channels

   5.745 to 5.825 GHz; 5 channels

E (E regulatory domain):

   2.412 to 2.472 GHz; 13 channels

   5.180 to 5.320 GHz; 8 channels

   5.500 to 5.700 GHz; 8 channels

(excludes 5.600 to 5.640 GHz)

F (F regulatory domain):

   2.412 to 2.472 GHz; 13 channels

   5.745 to 5.805 GHz; 4 channels

G (G regulatory domain):

   2.412 to 2.472 GHz; 13 channels

   5.745 to 5.865 GHz; 7 channels

H (H regulatory domain):

   2.412 to 2.472 GHz; 13 channels

   5.180 to 5.320 GHz; 8 channels

   5.745 to 5.825 GHz; 5 channels

I (I regulatory domain):

   2.412 to 2.472 GHz; 13 channels

   5.180 to 5.320 GHz; 8 channels

K (K regulatory domain):

   2.412 to 2.472 GHz; 13 channels

   5.180 to 5.320 GHz; 8 channels

   5.500 to 5.620 GHz; 7 channels

   5.745 to 5.805 GHz; 4 channels

N (N regulatory domain):

   2.412 to 2.462 GHz; 11 channels

   5.180 to 5.320 GHz; 8 channels

   5.745 to 5.825 GHz; 5 channels

Q (Q regulatory domain):

   2.412 to 2.472 GHz; 13 channels

   5.180 to 5.320 GHz; 8 channels

   5.500 to 5.700 GHz; 11 channels

R (R regulatory domain):

   2.412 to 2.472 GHz; 13 channels

   5.180 to 5.320 GHz; 8 channels

   5.660 to 5.700 GHz; 3 channels

   5.745 to 5.805 GHz; 4 channels

S (S regulatory domain):

   2.412 to 2.472 GHz; 13 channels

   5.180 to 5.320 GHz; 8 channels

   5.500 to 5.700 GHz; 11 channels

   5.745 to 5.825 GHz; 5 channels

T (T regulatory domain):

   2.412 to 2.462 GHz; 11 channels

   5.280 to 5.320 GHz; 3 channels

   5.500 to 5.700 GHz; 8 channels

(excludes 5.600 to 5.640 GHz)

   5.745 to 5.825 GHz; 5 channels

Z (Z regulatory domain):

   2.412 to 2.462 GHz; 11 channels

   5.180 to 5.320 GHz; 8 channels

   5.500 to 5.700 GHz; 8 channels

(excludes 5.600 to 5.640 GHz)

   5.745 to 5.825 GHz; 5 channels

Available transmit power settings 2.4 GHz

20 dBm (100 mW)

17 dBm (50 mW)

14 dBm (25 mW)

11 dBm (12.5 mW)

8 dBm (6.25 mW)

5 dBm (3.13 mW)

2 dBm (1.56 mW)

-1 dBm (0.78 mW)

5 GHz

20 dBm (100 mW)

17 dBm (50 mW)

14 dBm (25 mW)

11 dBm (12.5 mW)

8 dBm (6.25 mW)

5 dBm (3.13 mW)

2 dBm (1.56 mW)

-1 dBm (0.78 mW)

Integrated antennas    2.4 GHz, gain 2 dBi

   5 GHz, gain 3 dBi

Interfaces    1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE)

   Management console port (4-pin connector)

   Three 10/100/1000BASE-T ports (local Ethernet ports), including one PoE out port:

    PoE out provides 802.3af (class 0) when access point is powered by 802.3at, or no output when powered by 802.3af

   One passive pass-through port RJ-45 (back to bottom)

Indicators    Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions
(W x L x H)
   Access point (without mounting bracket): 3.5 x 5.5 x 1.25 in (89 x 140 x 31.5 mm)
Weight    Access point without mounting bracket or any other accessories: 10 oz (280 g)
Environmental    Operating

    Temperature: 32  to 104 F (0  to 40 C)

    Humidity: 10% to 90% (non-condensing)

    Max. altitude: 9843 ft (3,000 m) @ 40 C

   Non-operating (storage and transportation)

    Temperature: -22  to 158 F (-30  to 70 C)

    Humidity: 10% to 90% (non-condensing)

    Max. altitude: 15,000 ft (4,500 m) @ 25 C


System    1 GB DRAM

   256 MB flash

   710 MHz quad-core

Powering options    802.3af/at Ethernet switch

   Optional Cisco power injectors (AIR-PWRINJ5=, AIR-PWRINJ6=)

Power draw    8.5W (maximum, without PoE out)
Physical security    Torx security screw, included with the access point

   Kensington lock slot to lock device to the mounting bracket.

Mounting    Included with the access point: mounting bracket AIR-AP-BRACKET-W3
Accessories    Mounting bracket: AIR-AP-BRACKET-W3= (available as spare)

   Spacer kit: AIR-AP1815W-KIT= (sold separately), includes a spacer and RJ-45 jumper cable

   Physical security kit: AIR-SEC-50= (sold separately), with 50 pcs. security screws used to secure the access point onto wall-mounting bracket, 20 pcs. RJ-45 caps and 2 pcs. unlock keys used to block physical access to Ethernet ports
