• Wireless Access Point
  • Bluetooth 4.1 LE
  • 802.11ac Wave 2 (draft 5.0)
  • Bluetooth
  • Wi-Fi
  • Dual Band
  • DC power

Additional information



The Cisco Aironet 1810W Series Access Points offer a compact, wall plate - mountable Access Point, ideal for hospitality, cruise ships, residential halls or other multi-dwelling-unit deployments. The Aironet 1810W series combines Gigabit Ethernet wired and 802.11ac Wave 2 wireless connectivity into a sleek device, built to take advantage of existing cabling infrastructure. This combination reduces the total cost of ownership with no compromise to the end-user.

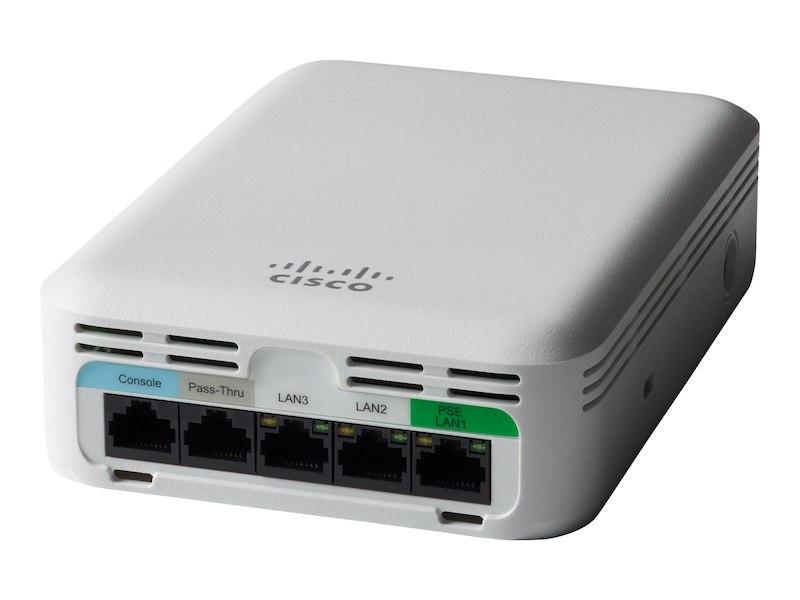

Cisco AIR-AP1810W-B-K9 Access Point Overview


Interfaces - 1 10/100/1000BASE-T PoE uplink port

- 1  Management console port (RJ-45)

- 3 10/100/1000BASE-T ports (local Ethernet ports), including 1 PoE out port

- 1  passive pass-through port RJ-45 (back to bottom)

- 1  DC power connector
Features 2x2 single-user/multiuser MIMO with two spatial streams

Maximal ratio combining (MRC)

20-, 40- and 80-MHz channels

PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz)

Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx)

802.11 Dynamic Frequency Selection (DFS)

Cyclic shift diversity (CSD) support
Regulatory Domain B (B regulatory domain):

- 2.412 to 2.462 GHz; 11 channels

- 5.180 to 5.320 GHz; 8 channels

- 5.500 to 5.720 GHz; 12 channels

- 5.745 to 5.825 GHz; 5 channels
System - 512 MB DRAM

- 256 MB flash

- 1.4 GHz system dual-core CPU
Dimensions (W x L x H) 165 x 114 x 41 mm (Access point without mounting bracket))
Weight 560g (Access point without mounting bracket or any other accessories)
Authentication and security Advanced Encryption Standard (AES) for Wi-Fi Protected Access 2 (WPA2)802.1X, RADIUS authentication, authorization and accounting (AAA)802.11i
Software Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release or later
Maximum clients Maximum number of associated wireless clients: 200 per Wi-Fi radio, in total 400 clients per access point
802.11ac 2×2 single-user/multiuser MIMO with two spatial streamsMaximal ratio combining (MRC)20-, 40- and 80-MHz channels PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz)Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx)802.11 Dynamic Frequency Selection (DFS)Cyclic shift diversity (CSD) support
Ethernet ports Authentication with 802.1X or MAC filteredDynamic VLAN or per port traffic locally switched or tunneled back to wireless LAN controller
Bluetooth (future availability) Integrated Bluetooth 4.1 (including BLE) ratio maximum transmit power: 5 dBmAntenna gain: 2 dBi
Integrated antennas 2.4 GHz, gain 2 dBi5 GHz, gain 4 dBi
Interfaces One 10/100/1000BASE-T PoE uplink port management console port (RJ-45)Three 10/100/1000BASE-T ports (local Ethernet ports), including one PoE out port:
 PoE out provides 802.3af when the access point is powered by Cisco local power supply (AIR-PWR-C=, AIR-PWR-D=), or ~6.5W when powered by 802.3at, or no output when powered by 802.3af

One passive pass-through port RJ-45 (back to bottom)DC power connector

Indicators Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors per-port status for local Ethernet ports privacy, LEDs are automatically turned off when the access point joins a controller. LEDs may be enabled to be administratively – see configuration guide.
Dimensions (W x L x H) Access point (without mounting bracket): 6.5 x 4.5 x 1.6 in. (165 x 114 x 41 mm)
Weight Access point without mounting bracket or any other accessories: 1.2 lb (560 g)
Environmental Nonoperating (storage) temperature: -22 to 158 F (-30 to 70 C)Nonoperating (storage) maximum altitude: 25 C, 15,000 ft (4,500m)Operating temperature: 32  to 104 F (0 to 40 C)Operating humidity: 10% to 90% percent (noncondensing)Operating maximum altitude: 40 C, 9843 ft (3,000m)
System 512 MB DRAM256 MB flash1.4 GHz system dual-core CPU
Input power requirements 44 to 57V DCOptional power supply and power injector: 100 to 240V AC; 49 to 60 Hz
Powering options 802.3af/at Ethernet switch optional Cisco power injectors (AIR-PWRINJ5=, AIR-PWRINJ6=)Optional Cisco local power supply (AIR-PWR-C= or AIR-PWR-D=)
Power draw Maximum values: 12.95W (15.4W with 100m of cable) with no PoE out, 20.7W (22W with 100m of cable) with 6.49W PoE out and 27.65W with 12.95W PoE out (when powered using AIR-PWR-C or AIR-PWR-D)
Note: When deployed using PoE, the power draw numbers listed above include the power loss in 100m of cabling on the uplink port and 100m of cabling on the PoE out port.
Physical security Torx security screw, included with the access point Kensington security slot
Mounting Included with the access point: mounting bracket AIR-AP-BRACKET-W2, compatible to install to a single gang junction box or multiple international standard optional:
  AIR-AP1810W-KIT=, spacer kit to mount the access point directly on a wall where standard junction boxes are not available

  AIR-OEAP1810-CRD=, cradle kit to mount the access point on a desk

Accessories Mounting bracket: AIR-AP-BRACKET-W2= (available as spare)Spacer kit: AIR-AP1810W-KIT= (sold separately), includes spacer and RJ-45 jumper cableCradle kit: AIR-OEAP1810-CRD= (sold separately), includes back cover and RJ-45 jumper cablePhysical security kit: AIR-SEC-50= (sold separately), with 50 pcs. security screws used to secure the access point onto wall-mounting bracket, 50 pcs. RJ-45 caps and 2 pcs. unlock keys used to block physical access to Ethernet portsCisco local power supply: AIR-PWR-D= (sold separately)
